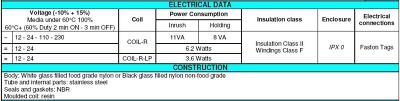

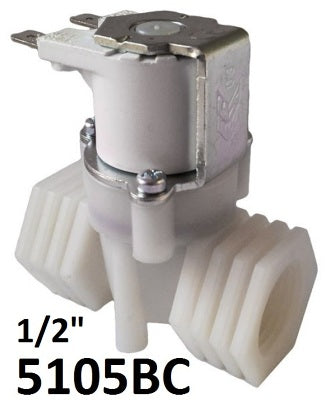

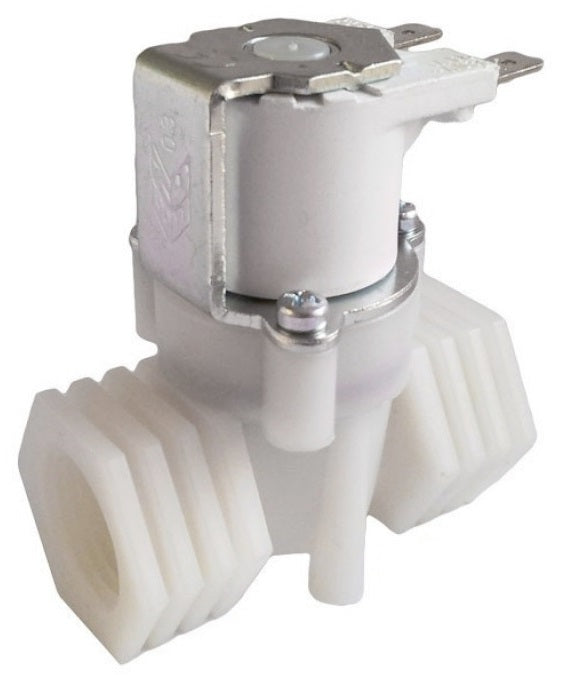

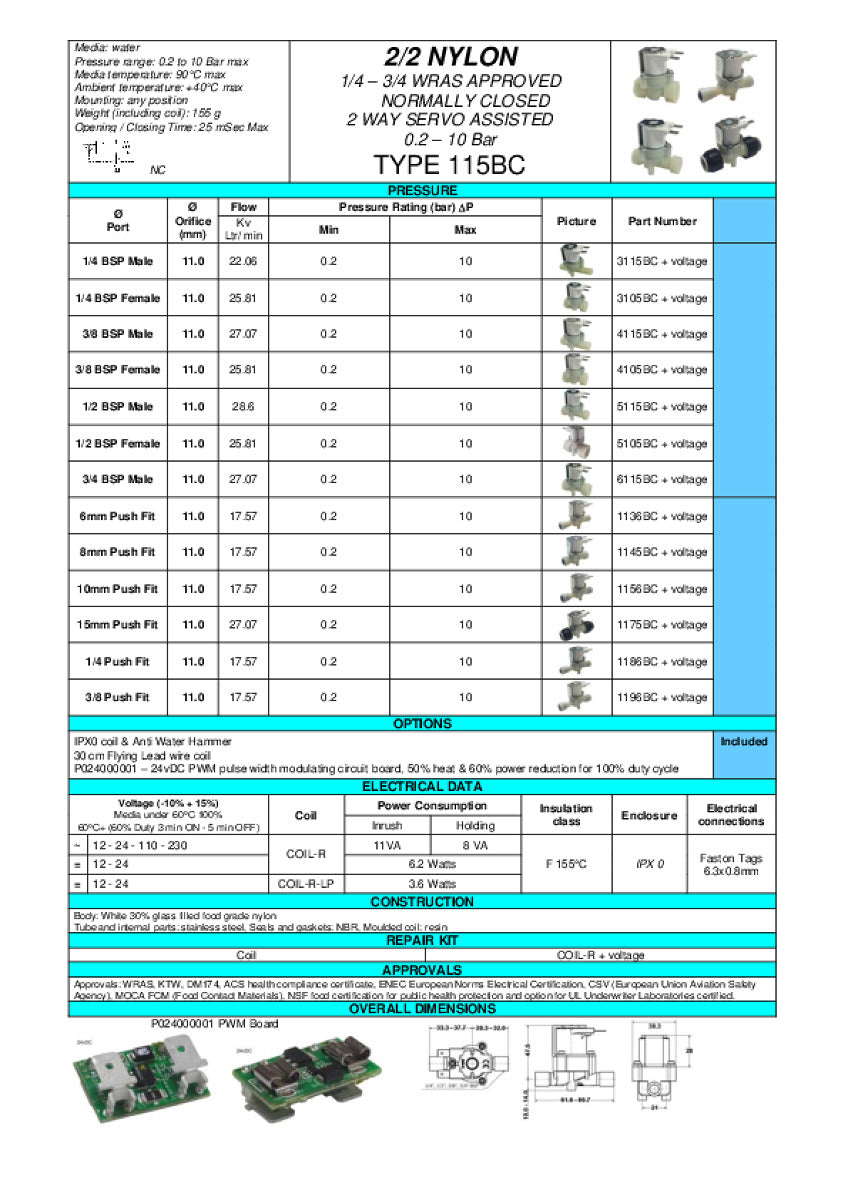

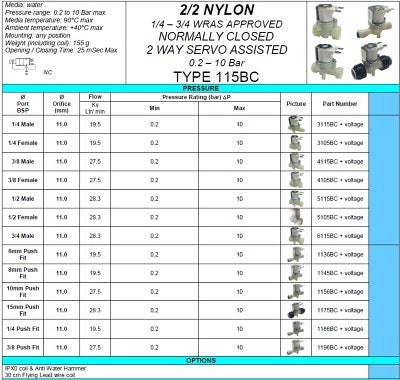

1/2 inch plastic water solenoid valve WRAS approved RPE R Mini 5105BC Function: 2/2 way normally closed Operation: Pressure assisted (Min 0.2 Bar pressure differential) Port: 1/2 BSP female thread Pressure: 0.2 to 10 Bar Orifice: 11.0mm Kv flow factor: 25.81 L/min based on water with 1 Bar pressure drop. Body: Nylon white good grade 30% Glass Filled Seals: NBR, option EPDM Media Temperature: +60°C (100% duty rating), +90°C (3 min ON - 5 min off) Ambient temperature: +60°C Max Coil: 12vAC 50Hz Holding 5VA 429mA, Inrush 5.9VA 490mA 12vAC/DC 50Hz Holding 4.4VA 365mA, Inrush 5.2VA, DC 8.5 Watts 12vDC 5.4 Watts 450mA 24vAC 50Hz Holding 7.2VA 302mA, Inrush 8.1VA 337mA 24vDC 6.3 Watts 265mA 110vAC 50Hz Holding 5VA 70mA, Inrush 8.8VA 80VA 220/240vAC 50Hz Holding 6.6VA 29.7mA, Inrush 7.6VA 33mA
Coil option: Low power 12vDC 3.2 Watt or 24vDC 3.6 Watt IP00 with faston tag Glass F Electrical connection: faston tags 6.3x0.8mm, (option flying lead wires) Voltage: 12vDC, 12vAC/DC, 24vDC, 12vAC, 24vAC, 110vAC or 220/240vAC
Approvals: WRAS, KTW and DM174 for drinking water production, transfer and storage, ACS health compliance certificate, ENEC European Norms Electrical Certification, CSV (European Union Aviation Safety Agency), MOCA FCM (Food Contact Materials), NSF food certification for public health protection and option for UL Underwriter Laboratories certified.
The RPE R Mini 510 water solenoid valve is ideal for most water inlet systems, drinking water applications, electrical taps and washing machine water systems.
