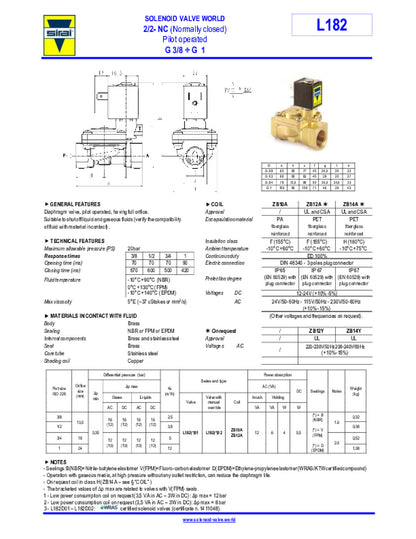

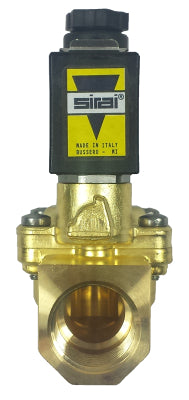

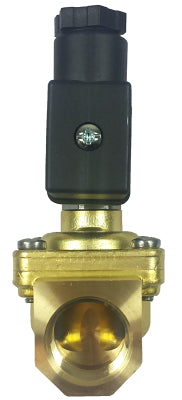

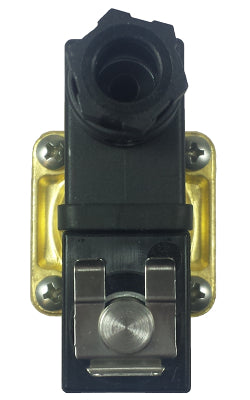

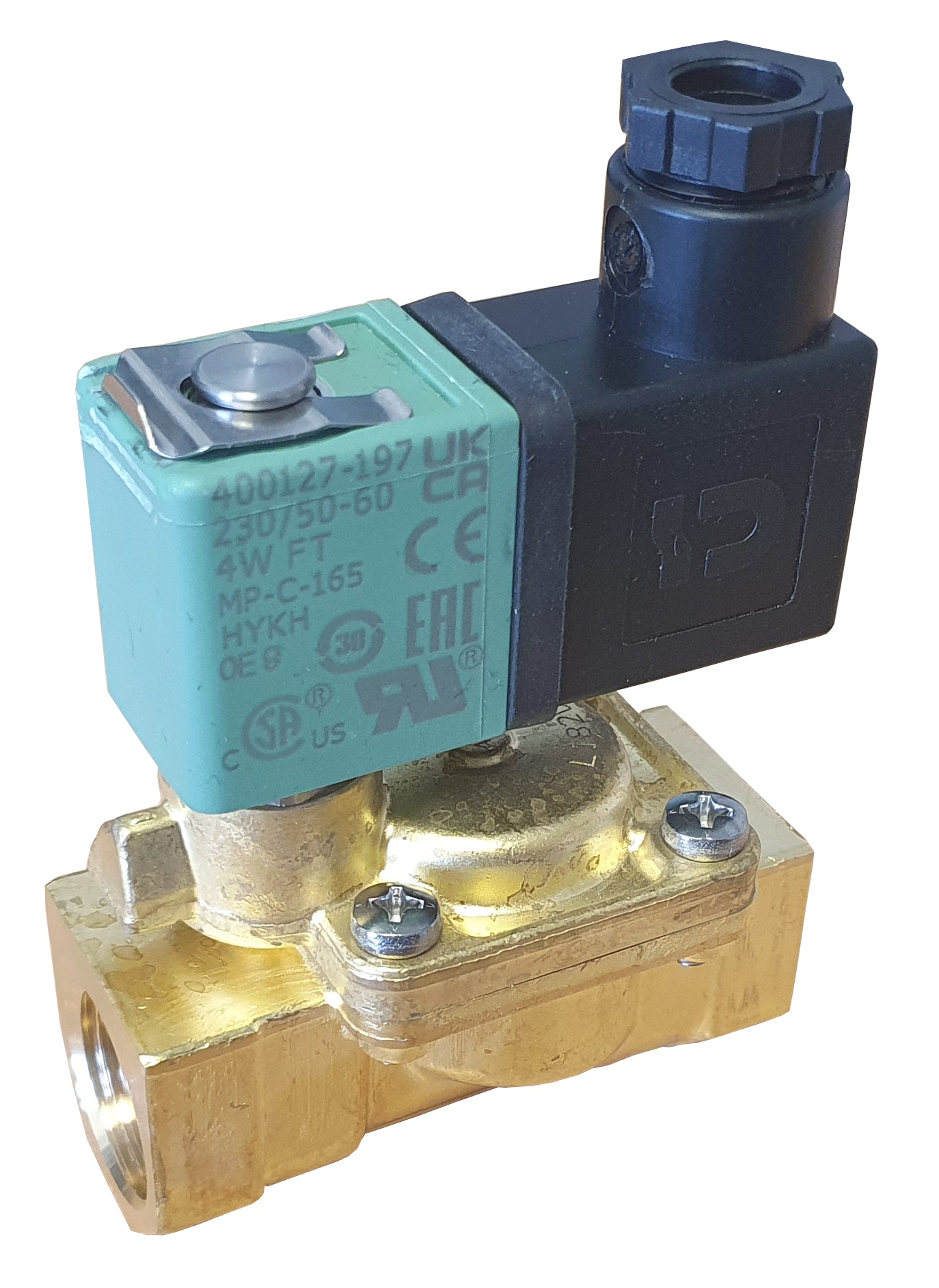

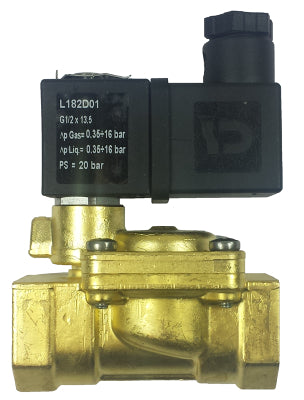

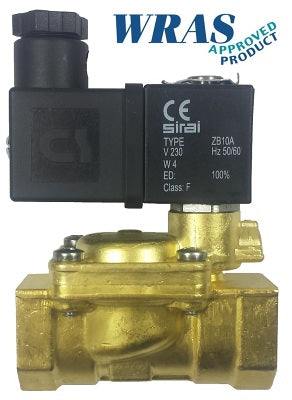

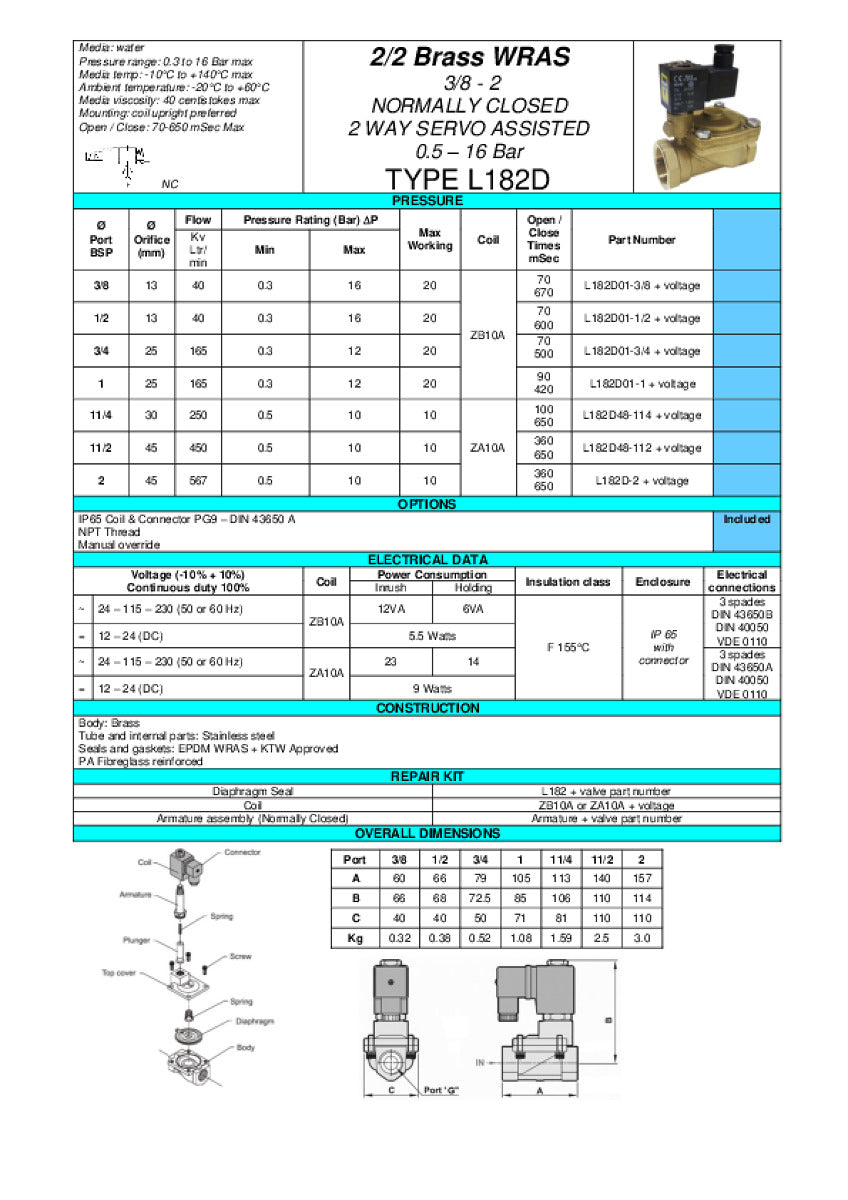

Asco 1/2 inch WRAS approved water solenoid valve Sirai L182D01-12

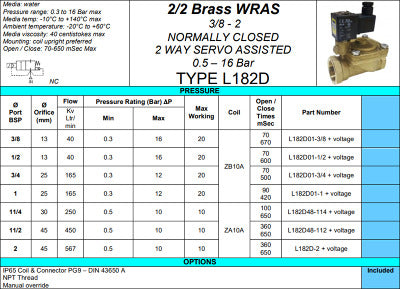

Function: 2/2 way normally closed Operation: Pressure assisted, requires minimum 0.3 Bar pressure difference Port: 1/2 BSPP thread (ISO 228) Pressure: 0.3 to 16 Bar Body: Brass 2.0401 Internals: stainless 1.4104 Seals: EPDM (WRAS certified) Media: clean water Media temperature: -10C to +145°C Ambient temp: -10°C to +60°C Max media viscosity: 37 CST. Opening time: 70 msec, Closing time: 670mSec Voltage: 12vDC, 24vDC, 24vAC, 115vAC and 230vAC Coil type: ZB10A Protection: IP65 with form B rectangular connector (included) Duty cycle 100% ED Rated power: DC 5.5 watts, AC 6VA.
