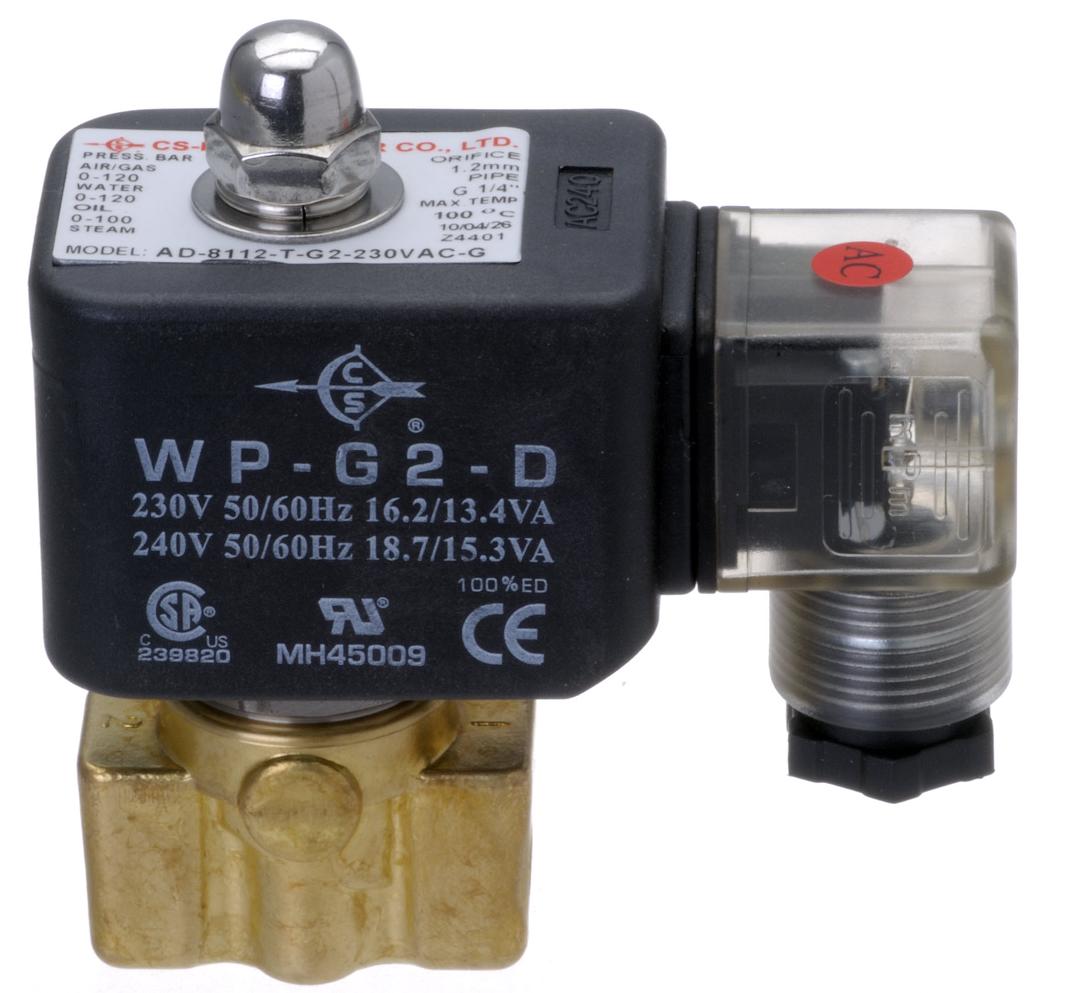

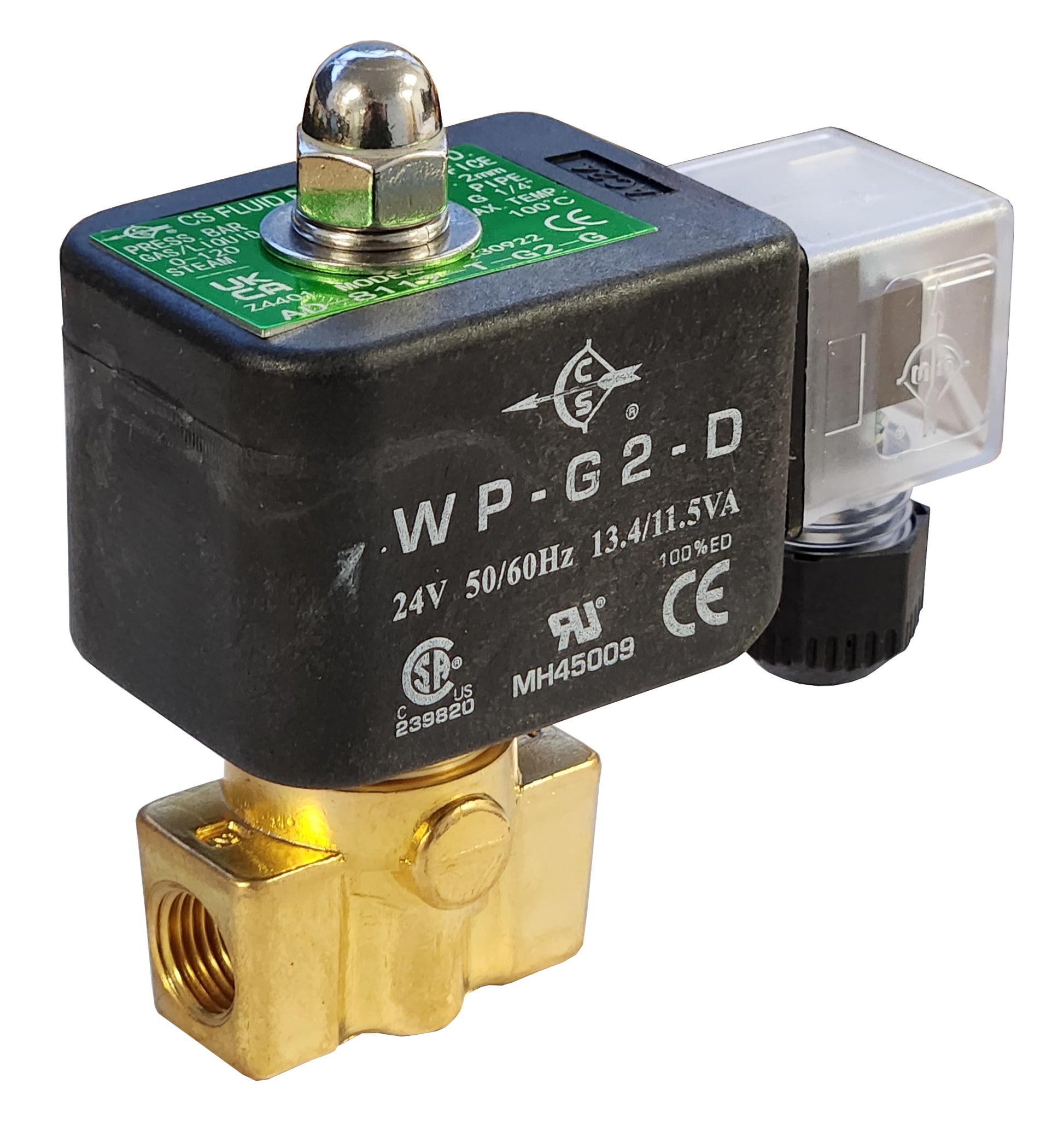

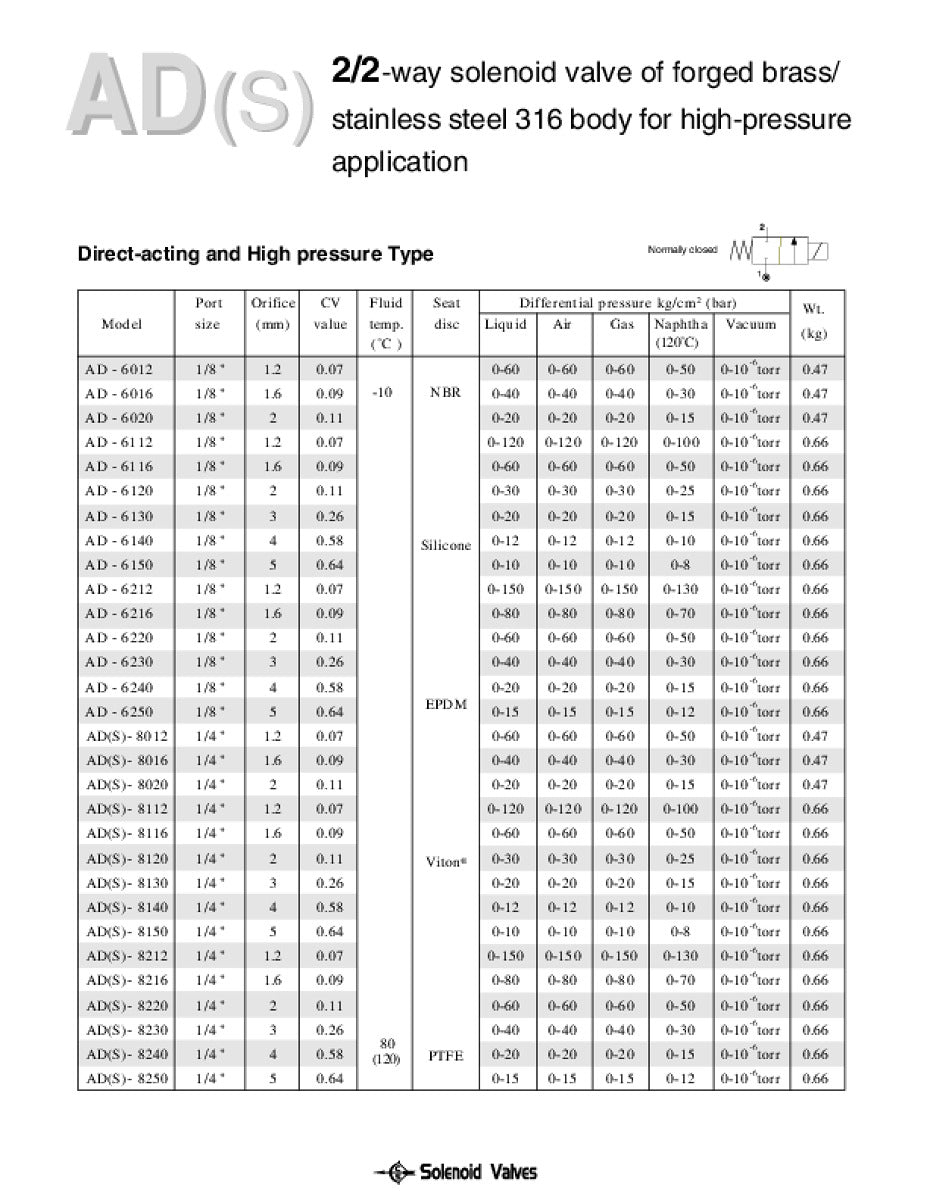

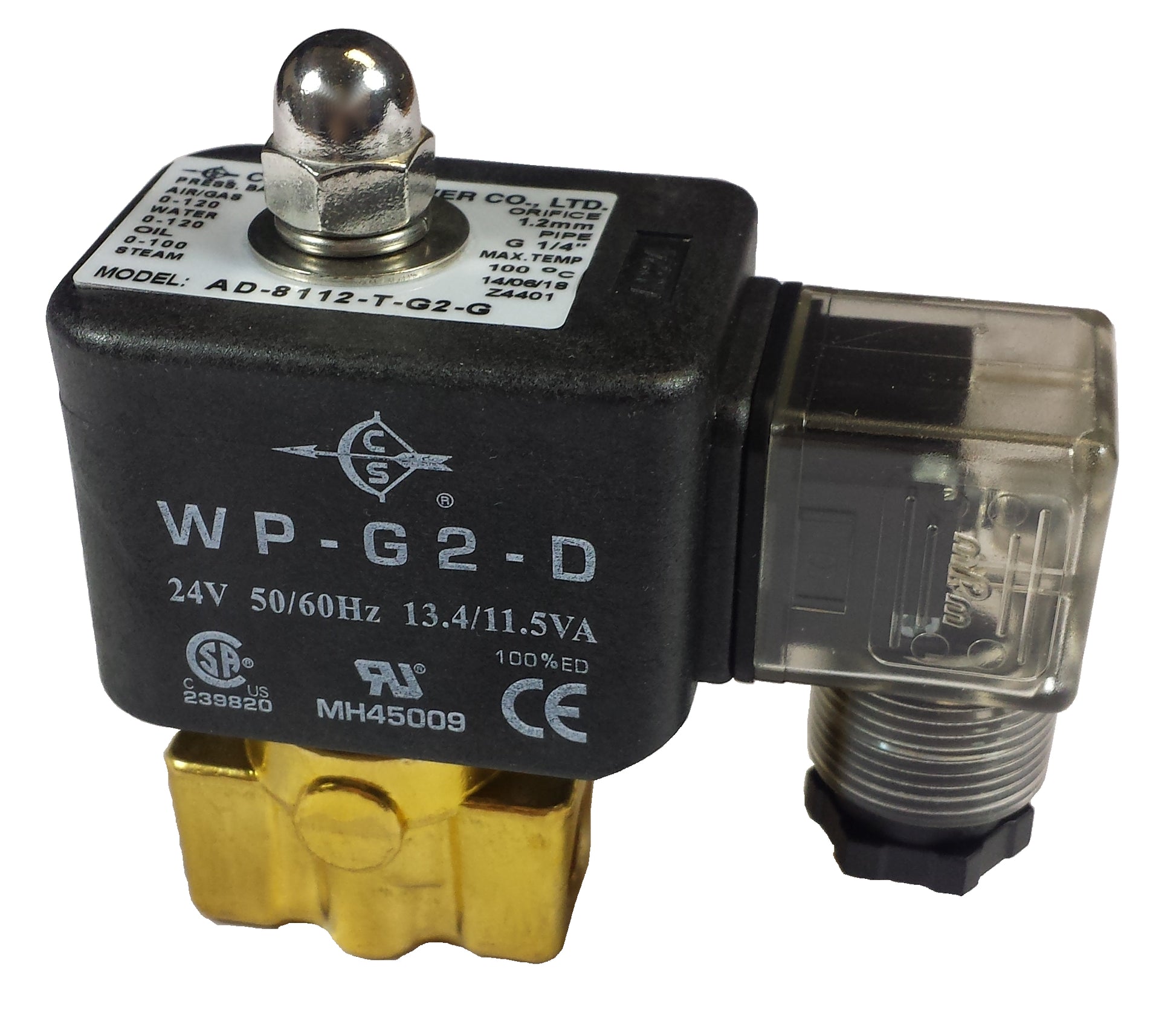

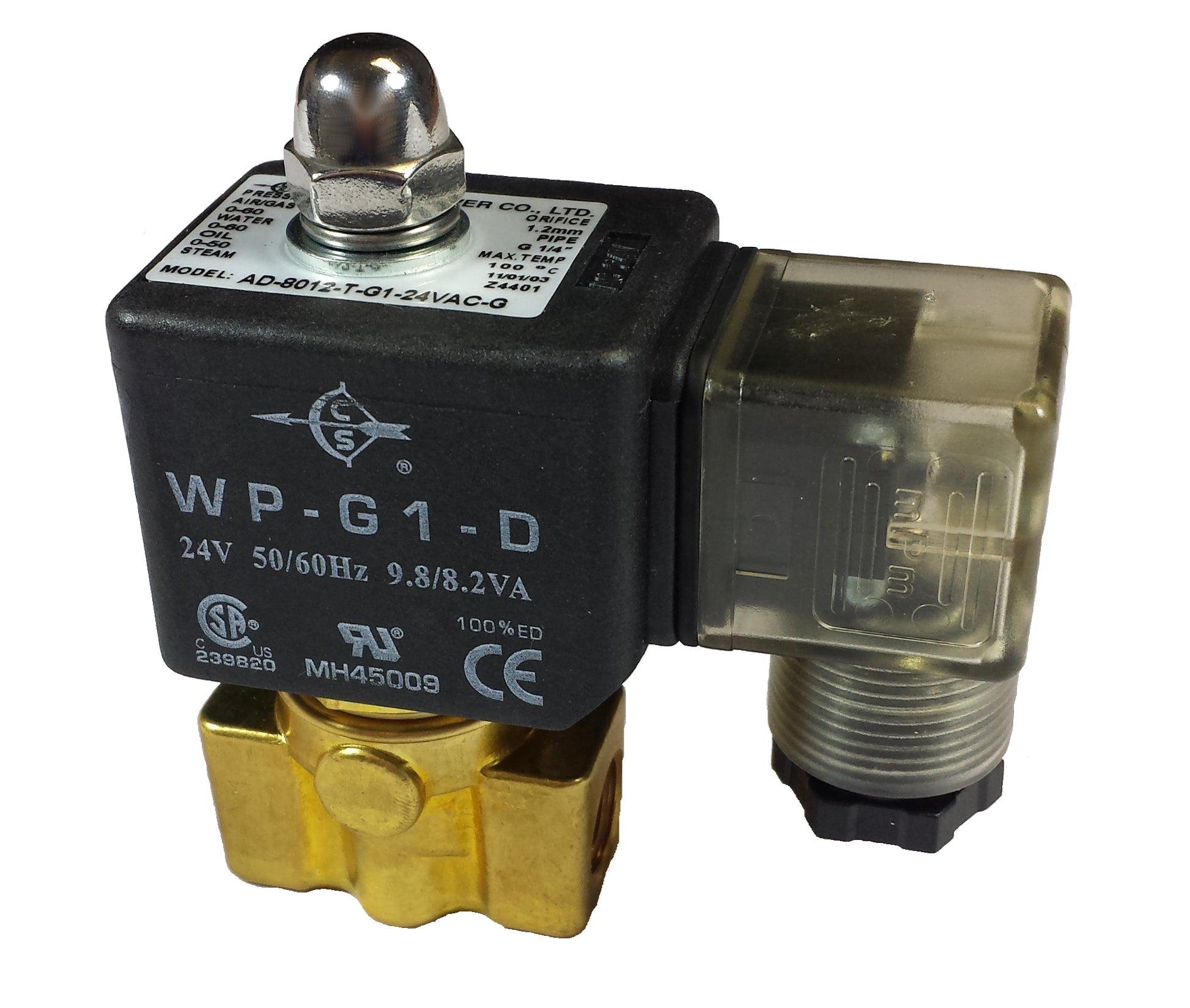

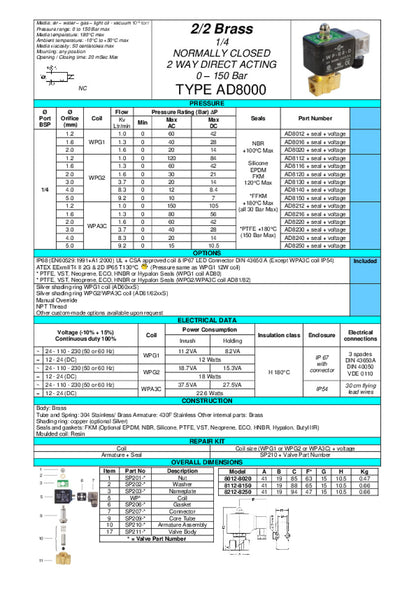

1/4 inch Miniature brass solenoid valve CS Fluid Power AD8000.
Pressure / Orifice (email Models required)
0–150 Bar / 1.2mm (AD8212) +£24.00
0–120 Bar / 1.2mm (AD8112) +£24.00
0–80 Bar / 1.6mm (AD8216) +£24.00
0–60 Bar / 1.2mm (AD8012)+£24.00
0–60 Bar / 1.6mm (AD8116) +£24.00
0–60 Bar / 2mm (AD8220) +£24.00
0–40 Bar / 1.6mm (AD8016)+£24.00
0–40 Bar / 3mm (AD8230) +£24.00
0–30 Bar / 2mm (AD8120) +£24.00
0–20 Bar / 2mm (AD8020)+£24.00
0–20 Bar / 3mm (AD8130) +£24.00
0–20 Bar / 4mm (AD8240) +£24.00
0–15 Bar / 5mm (AD8250) +£24.00
0–12 Bar / 4mm (AD8140) +£24.00
0–10 Bar / 5mm (AD8150)

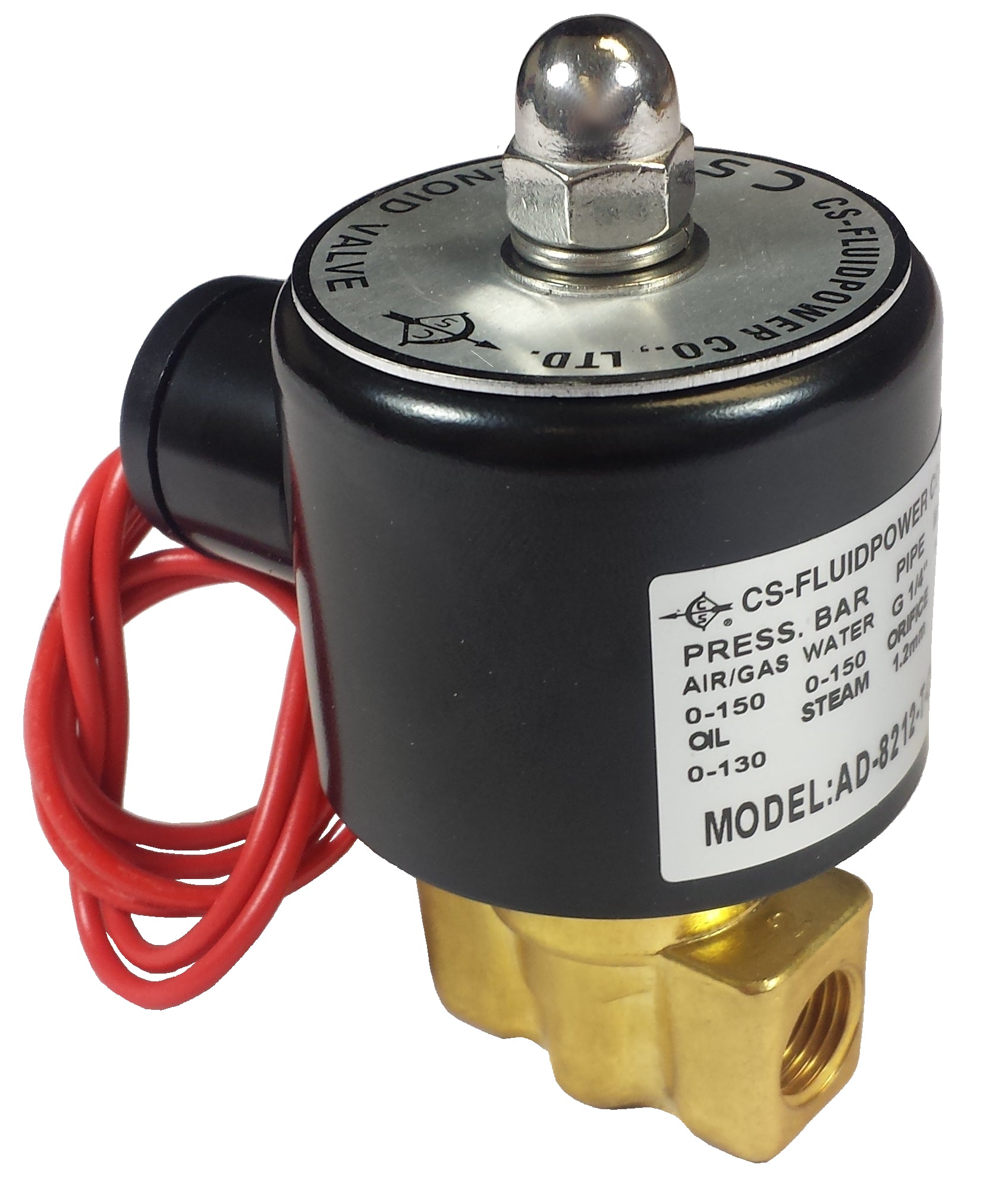

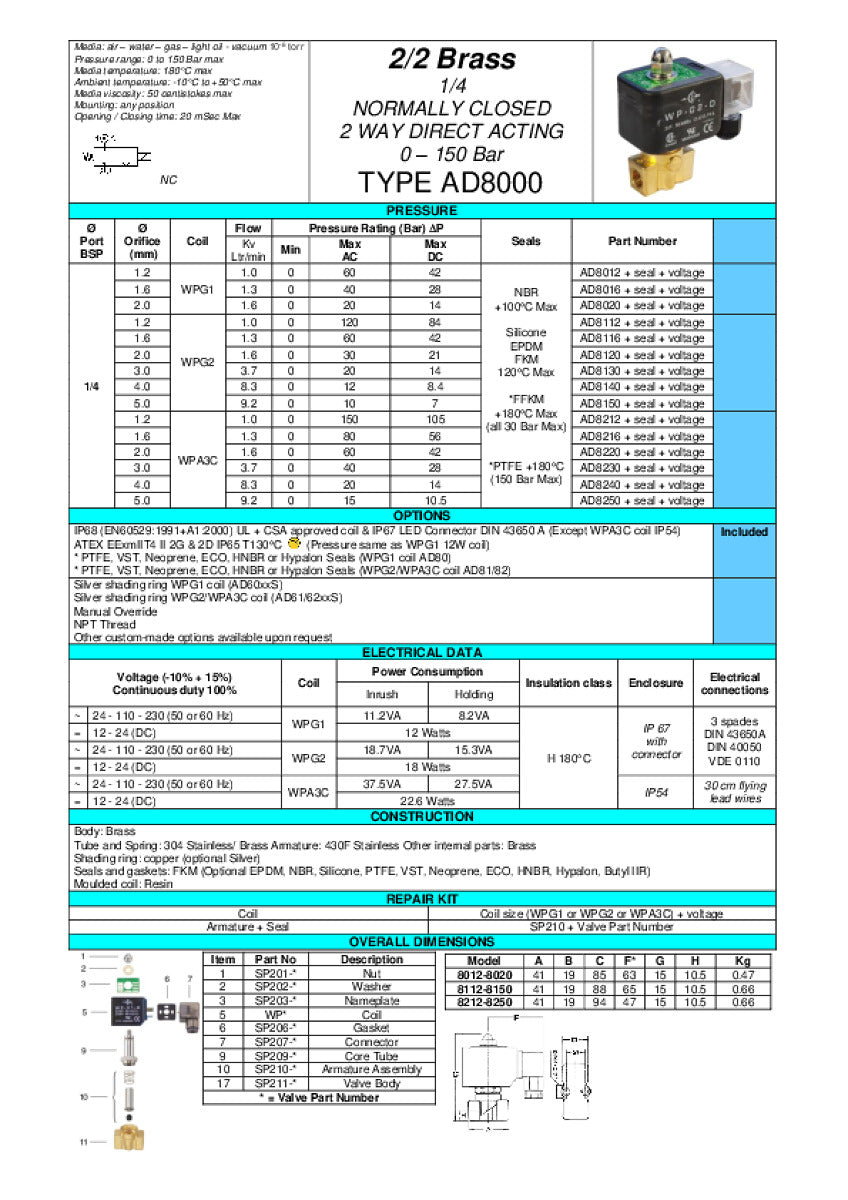

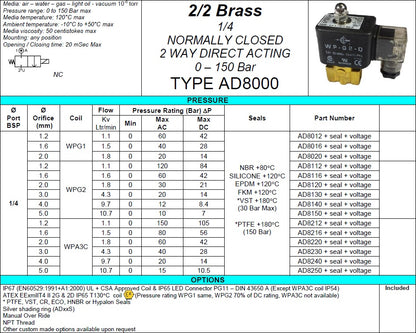

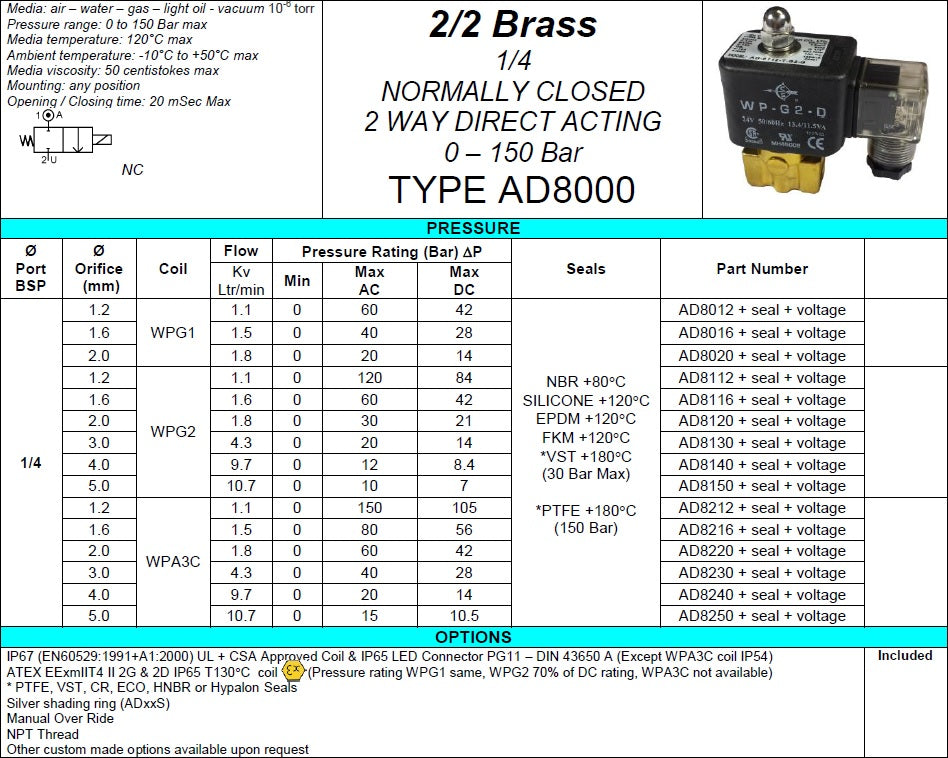

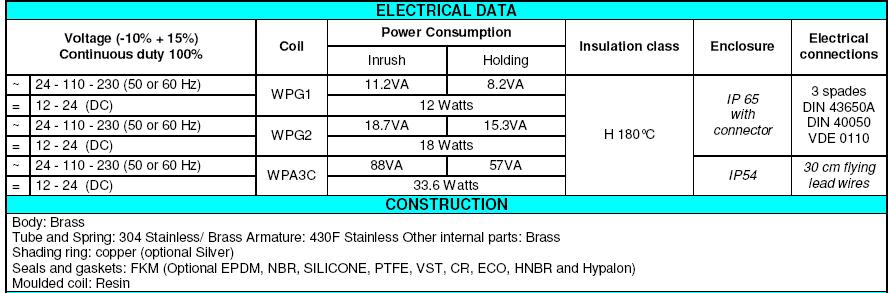

Function: 2/2 way normally closed Operation: direct acting Port: 1/4 BSP standard, option NPT or Rc thread. Pressure: 0 to 150 Bar (depending on orifice and coil power level) Vacuum: Torr 10-6 Max Body: Brass Internals: stainless steel Orifice: 1.2 mm, 1.6 mm, 2 mm, 3 mm, 4 mm or 5 mm Kv flow factor: 1 to 9.15 according to orifice, based on water with 1 Bar pressure drop. Seals: FKM standard, option EPDM, NBR, Silicone, PTFE, VST, Neoprene, ECO, HNBR or Hypalon. (PTFE must be used for pressures over 30 Bar). Media: air, water, light oils, vacuum, and most other non-corrosive fluids under 50CST and gases that are compatible with materials of construction. Coil: WPG1 12 watt UL, CSA, CE, IP68 Class H 100% duty rated DIN43650A, supplied with DIN43650A LED IP67 connector. (overall protection is IP67) Coil: WPG2 18 Watt UL, CSA, CE and IP68 Class H 100% duty rated DIN43650A, supplied with DIN43650A LED IP67 connector. (overall protection is IP67) Coil option: WPA3C 14.3 to 27.5 Watt (according to voltage) IP54 Class H with 30cm flying lead wires 100% duty rated. Coil option available AD80**: ATEX EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22 Pressure same as 12 Watt WPG1 coil Voltages: 12vDC, 24vDC, 48vDC or 24vAC, 48vAC, 110vAC or 230vAC. Other options: Manual Override and other custom-made options.
