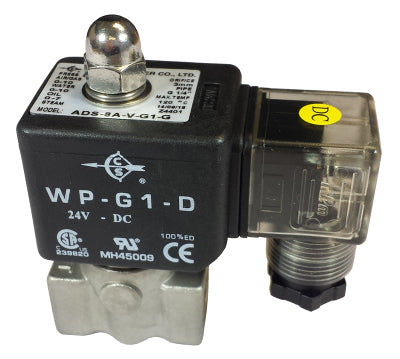

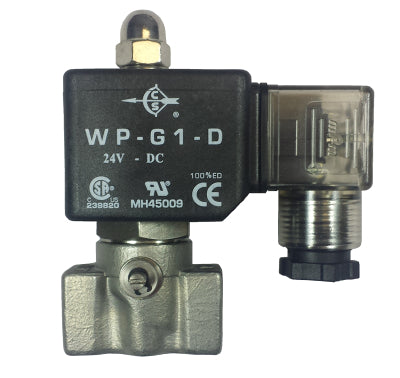

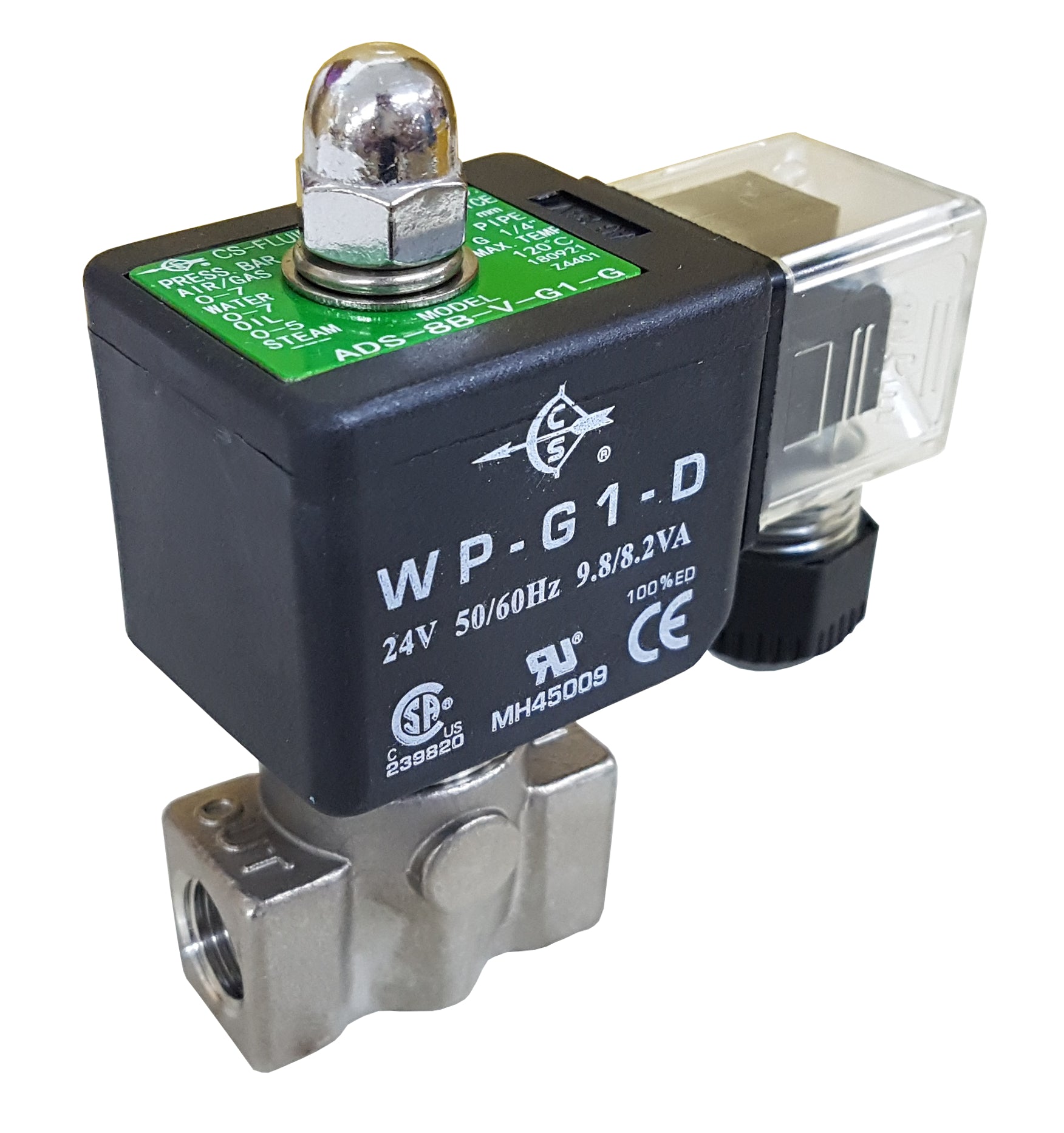

1/4 Stainless steel solenoid valve 0-10 Bar 2/2 N/Closed thread type BSP (G)

1/4 inch Stainless steel solenoid valve 2/2 normally closed 0–10 Bar (150 psi) CS Fluid Power ADS8A, ADS8B + ADS8C.

Thread type 1/4 NPT (N) +£10.00 request available

Shading Ring Copper standard

Coil: 12watts (WPG1) IP67

Function: 2/2 way normally closed
Operation: direct acting
Port: 1/4 BSPT, option NPT thread
Body: 316 stainless steel
Internals: stainless steel
Pressure: 0 to 10 Bar according to voltage and orifice
Vacuum: 0 to -101kPa (relative 757.56 mmHg) or 99.67% vacuum
Orifice: 3mm (ADS8A), 4mm (ADS8B) and 5mm (ADS8C).
Flow: 3.71 to 9.2 L/Min according to orifice, based on water with 1 Bar pressure drop.
Temperature: -10 to +180°C Max according to seal material
Sealing: FKM standard, Option EPDM, NBR, Silicone, PTFE, VST, Neoprene, ECO, HNBR, Hypalon, Butyl IIR
Media: air, water, light oils, vacuum and most other fluids under 50CST and gases compatible with materials of construction.
Coil: WPG1 12 Watt UL, CSA, IP68 CE approved Class H 100% duty rated DIN43650A, fitted with IP67 LED connector, so overall protection is IP67.
Coil Option: ATEX EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22 (Replacing WPG 1 pressure range same, WPG2 is 70% of DC pressure).
Voltage: 12vDC, 24vDC, 48vDC or 24vAC, 48vAC, 110vAC or 230vAC.

Other options requests: Manual Override +£60  silver shading ring +£50 degreased for+£25 oxygen use
