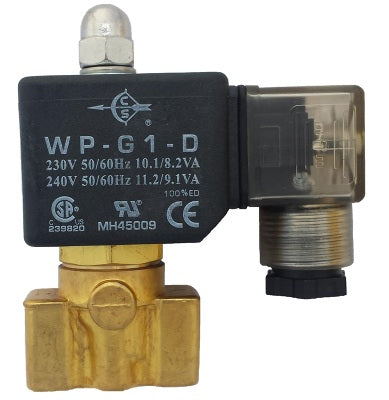

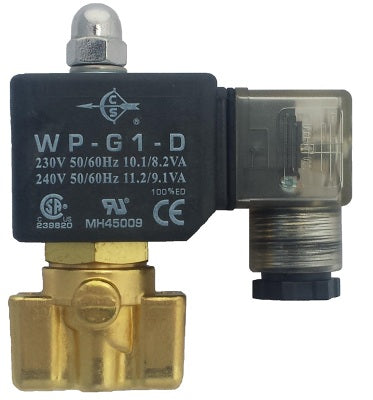

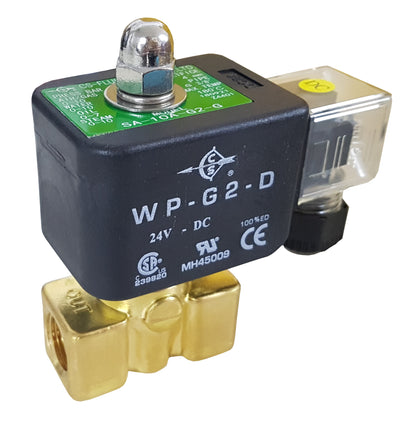

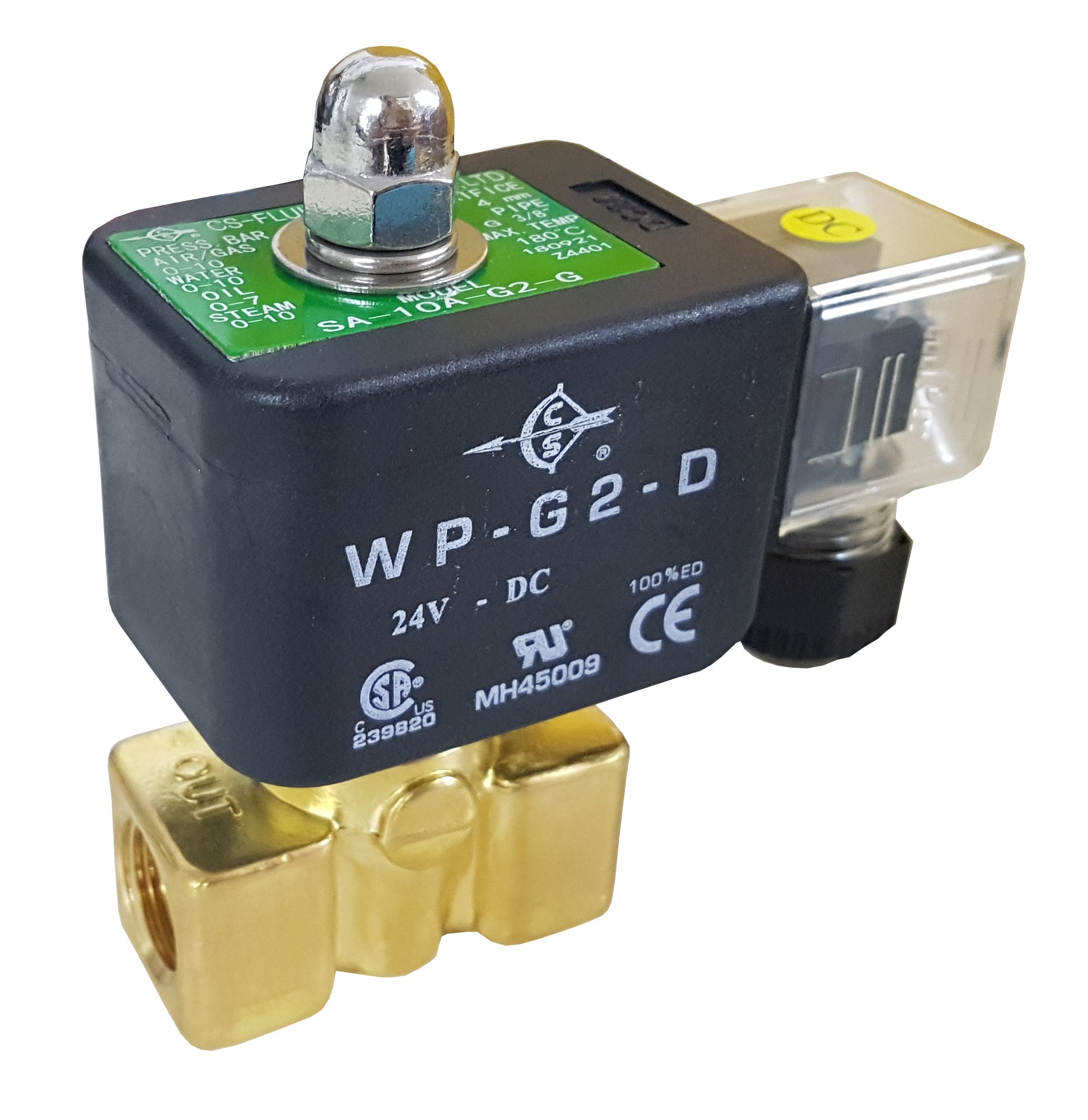

1/8, 1/4, 3/8 Steam Solenoid Valve 0-10 Bar 2/2 N/Closed BSP (G) thread type

1/8, 1/4, 3/8 Steam Solenoid Valve 0-10 Bar 2/2 N/Closed BSP (G) thread type

£63.99 GBP
£72.99 GBP £63.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

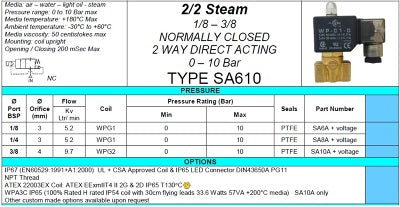

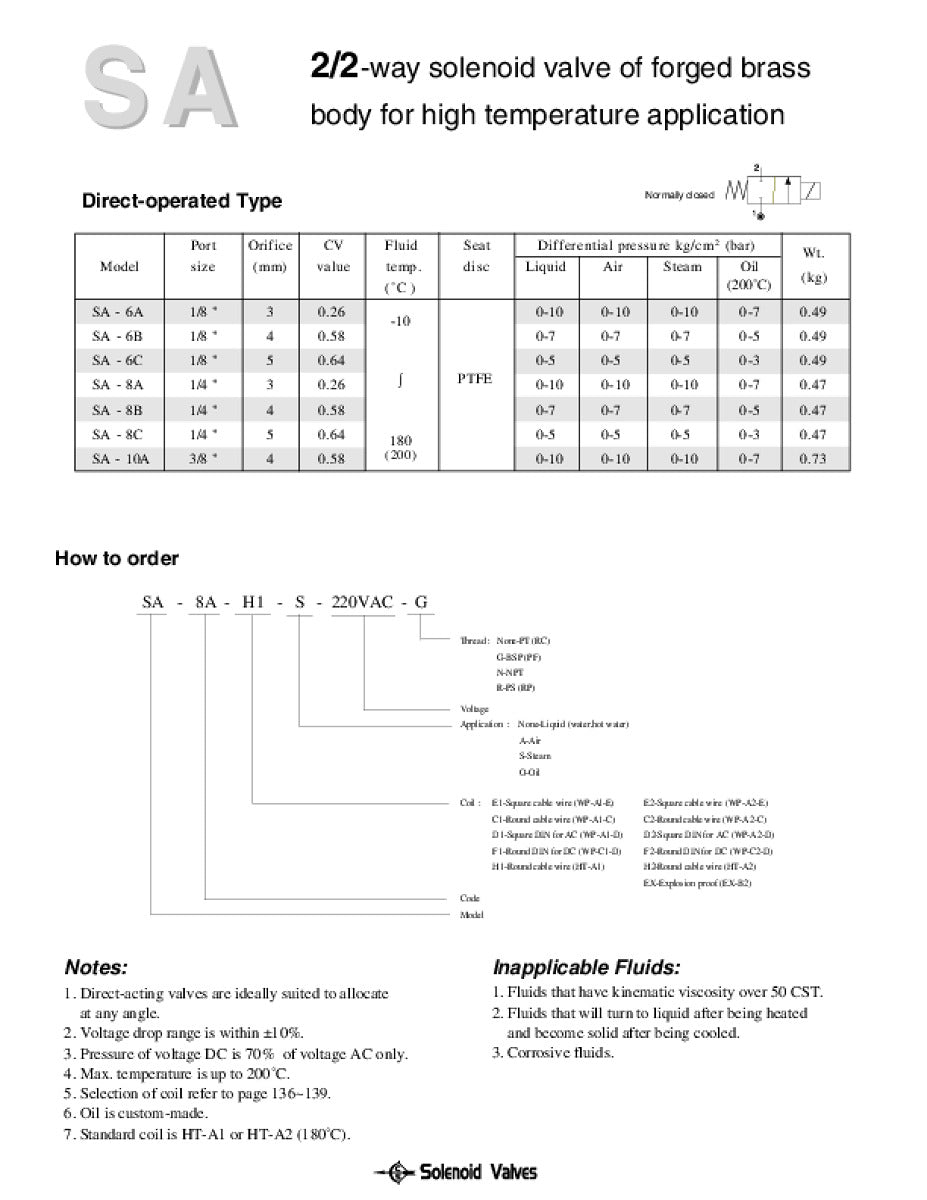

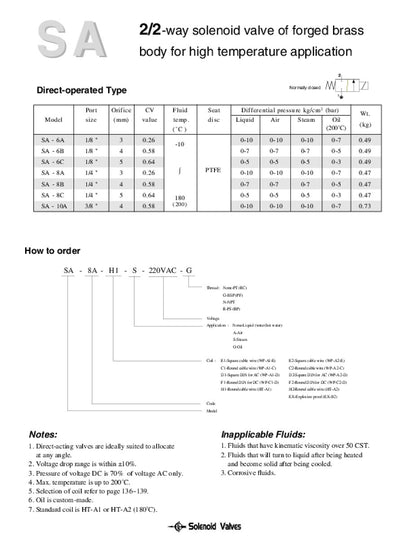

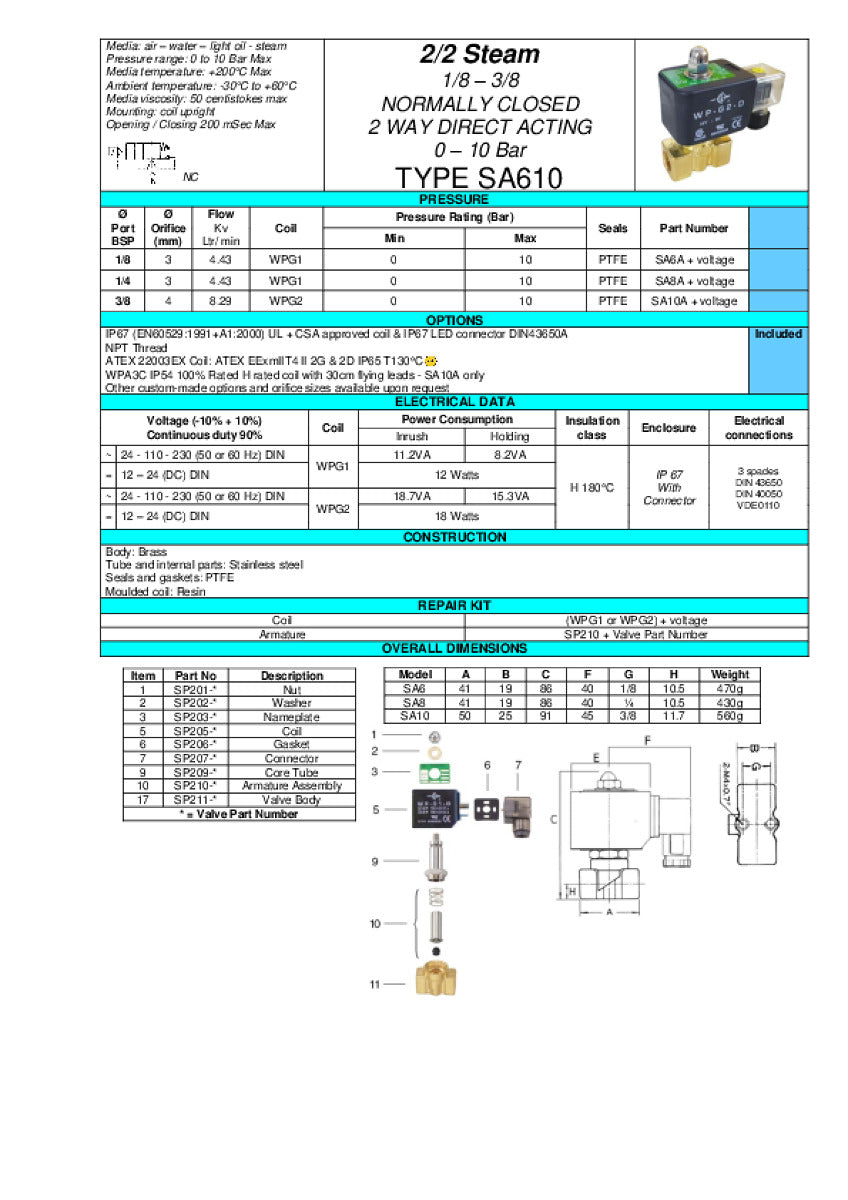

1/8 1/4 3/8 Brass steam solenoid valve CS Fluid Power SA6A, SA8A, SA10A

Function: 2/2 way normally closed
Operation: direct acting
Port: 1/8, 1/4 or 3/8 BSP, option NPT thread.
Pressure: 0 to 10 Bar
Media Temperature: +180ºC Max
Seals: PTFE
Orifice: 3.0mm 1/8 and 1/4, 4.0mm 3/8 thread
Kv flow factor: 4.43 or 8.29 L/min according to orifice, based on water with 1 Bar pressure drop.
Media: steam, hot air, hot water and hot oils under 50CST and most other non-aggressive fluids and gases compatible with materials of construction. Proven to be very good for ozone applications.

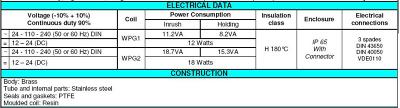

Coil: WPG1 12 Watt H Rated IP67 UL CSA CE approved DIN43650A 100% duty rated.
Coil: WPG2 18 Watt H Rated IP67 UL CSA CE approved DIN43650A 100% duty rated.
Protection: IP67 with LED connector (Included)
Coil option: WPA3C 14.3 to 27.5 Watt (according to voltage) IP54 Class H with 30cm flying lead wires 100% duty rated.
Coil option: ATEX EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22. (SA6 and SA8 only)
Voltages: 12vDC, 24vDC, 48vDC or 12vAC, 24vAC, 48vAC, 110vAC, 230vAC 50/60Hz

A particular favourite for ozone cleaning applications.



Brand: CS Fluid Power Co Ltd

Model: SA6,SA8,SA10

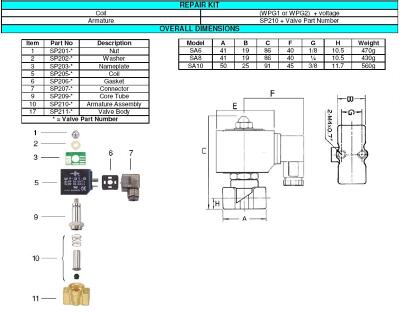

Width: 19.00 mm

Height: 86.00 mm

Depth: 41.00 mm

Weight: 0.74 kg

Valve / Product Type: Solenoid Valve

Body Material: Brass

Voltage: 110vAC, 12vDC, 230VAC, 24vAC, 24vDC, 48vAC, 48vDC

Port Size: 1/4 thread, 1/8 thread, 3/8 thread

Function: 2/2 Normally Closed

Operation: Direct Acting

Pressure Maximum: 0.02 Bar (20 mBar), 0.1 Bar (100 mBar), 0.2 Bar (200 mBar), 0.3 Bar (300 mBar), 0.4 Bar (400 mBar), 0.5 Bar (500 mBar), 0.6 Bar (600 mbar), 0.7 Bar (700 mBar), 0.8 Bar (800 mBar), 1 Bar, 1.2 Bar, 1.3 Bar, 1.4 Bar, 1.5 Bar, 1.6 Bar, 2 Bar, 2.5 Bar, 3 Bar, 3.5 Bar, 4 Bar, 4.5 Bar, 5 Bar, 5.5 Bar, 6 Bar, 6.5 Bar, 7 Bar, 7.5 Bar, 8 Bar, 8.5 Bar, 9 Bar, 10 Bar

Seals: PTFE (Teflon)

Media: Air, Fluid (Non Aggressive), Gases (Non Aggressive), Gases (Slight Acid/Alakli), Oils + Fuels 50cSt Max, Steam, Vacuum (Low), Water

Options required: Mounting Holes

Orifice: 3.0mm, 4.0mm

Approvals: ATEX Zone II GD, ATEX Exm, IP54, IP65, IP66, IP67, CSA, UL
