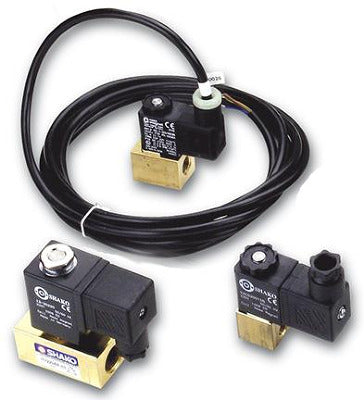

1/8 Brass solenoid valve 0-8.5 Bar 2/2 way Normally Closed Thread Type 1/8 BSP (G)

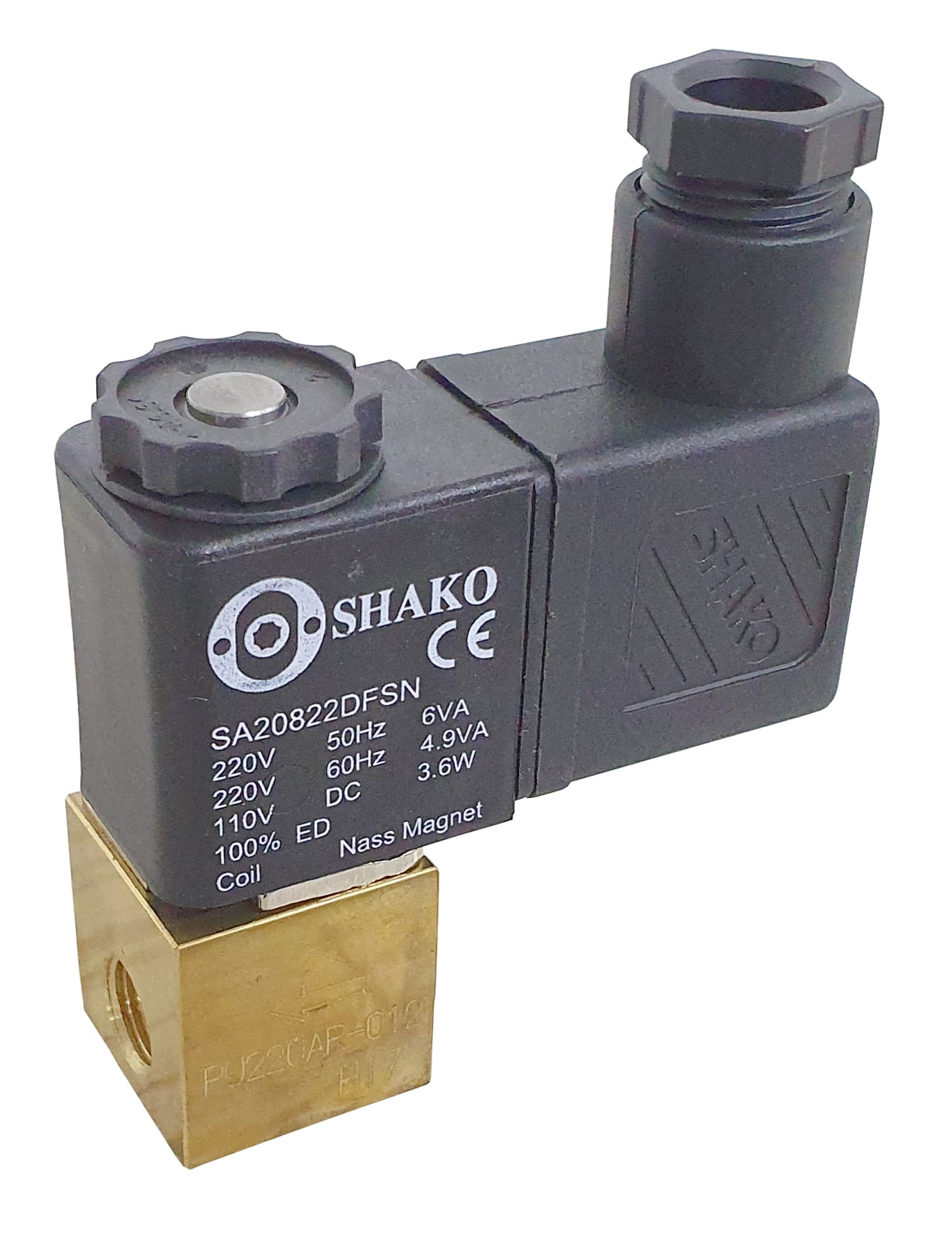

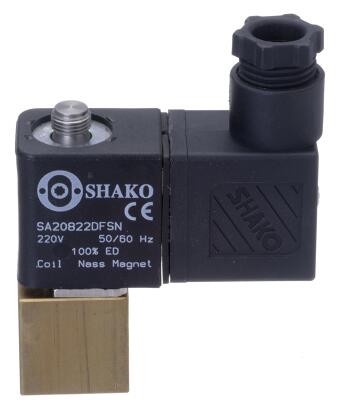

1/8 Brass solenoid valve Shako PU220AR-01 Thread Type 1/8 BSP (G)

• Width: 22.00 mm
• Height: 72.00 mm
• Depth: 22.00 mm
• Weight: 0.46 kg

Function: 2/2 way normally closed
Operation: direct acting
Port: 1/8 BSP, option NPT thread
Pressure: 0 to 8.5 Bar (AC) or 0 to 7 Bar (DC Voltage)
Body: Brass
Internals: stainless steel
Seals: NBR standard, option FKM, EPDM or HNBR
Orifice: 1.5 mm
Kv flow factor: 1.2 L/Min based on water with 1 Bar pressure drop.
Media: air, water, vacuum, light oils, LPG, diesel, petrol, propane, inert gases, nitrogen, carbon dioxide, argon, oxygen, kerosene, fuel and any other gases and fluids under 40CST that are compatible with the materials of construction.

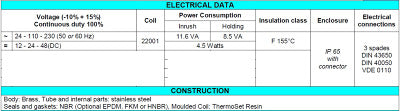

Coil: low power 4.5 watt IP65 Class F DIN43650B 100% duty rated
Protection: IP65 with connector (Included)
Coil option: ATEX EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22.
Voltages: 6vDC, 12vdc, 24vdc, 48vdc, 110vDC and 12vAC, 24vAC, 48vAC, 110vAC and 230vAC.
