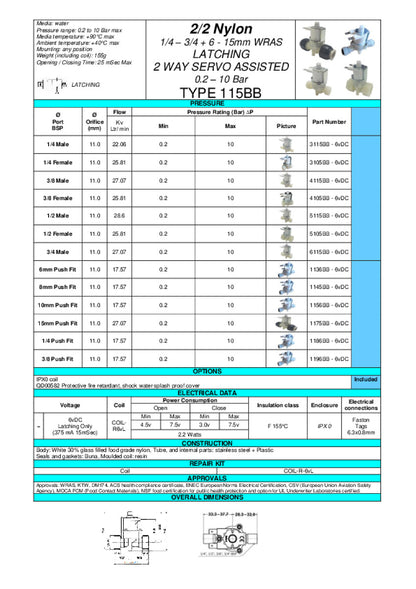

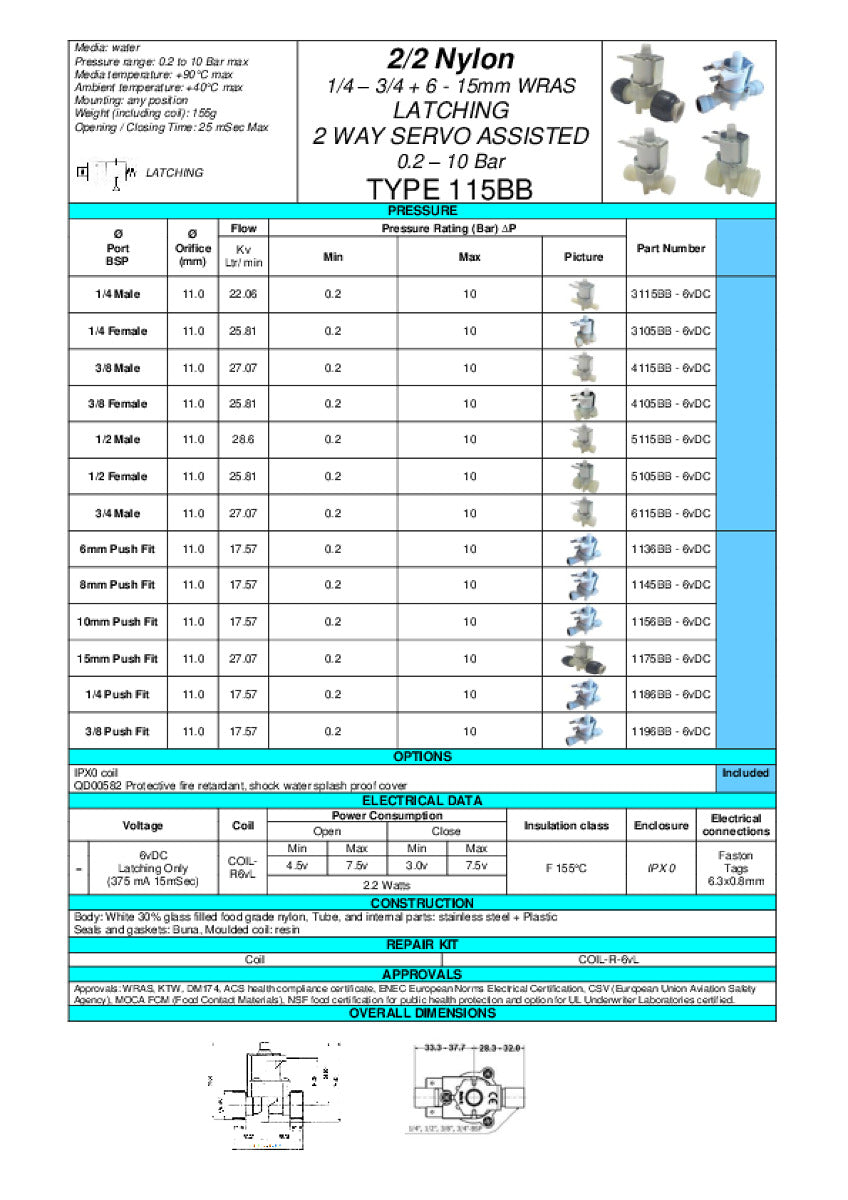

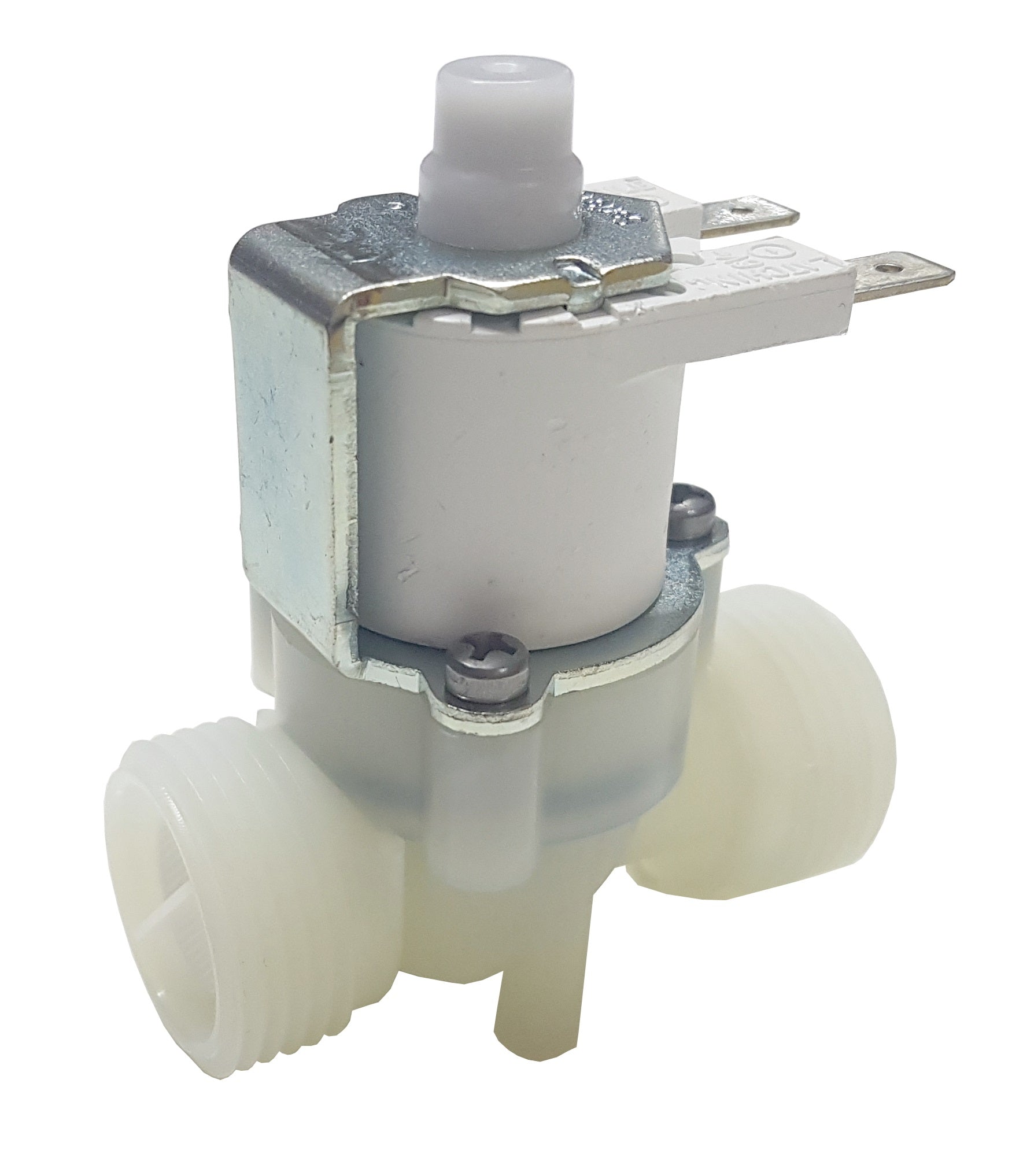

3/4 inch latching / bi-stable water solenoid valve WRAS approved

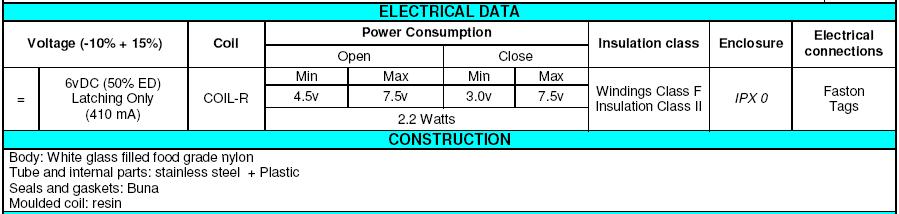

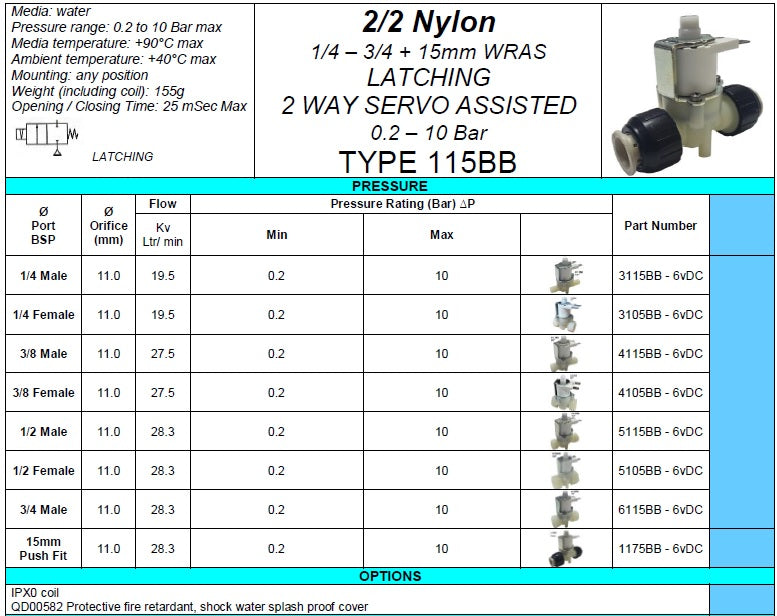

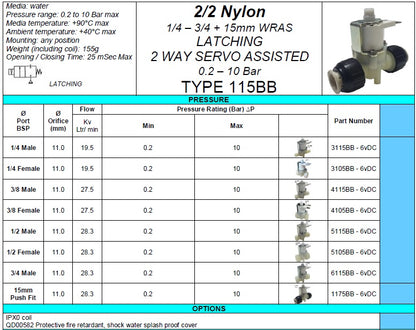

RPE 6115BB Function: 2/2 way latching / bi-stable (20 millisecond pulse max) with inlet filter Operation: Pressure assisted (Requires Min 0.2 Bar pressure difference) Port: 3/4 BSP male thread. Pressure: 0.2 to 10 Bar Orifice: 11.0mm Kv flow factor: 27.07 L/Min based on water with 1 Bar pressure difference. Nylon white good grade GF Coil: R 2.25 Watts IP00 with 6.3x0.8mm faston tags Voltage: 6vDC (375mAmp 15 to 20 millisecond pulse), will accept 9 volt and 12 volt with a shorter pulse.
