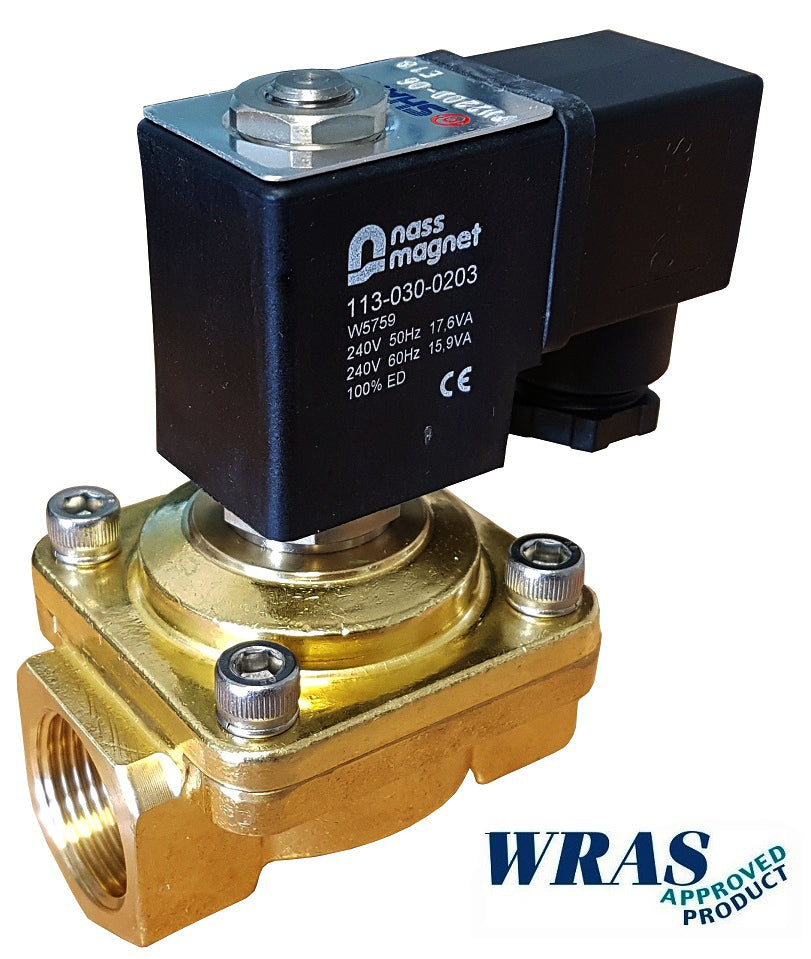

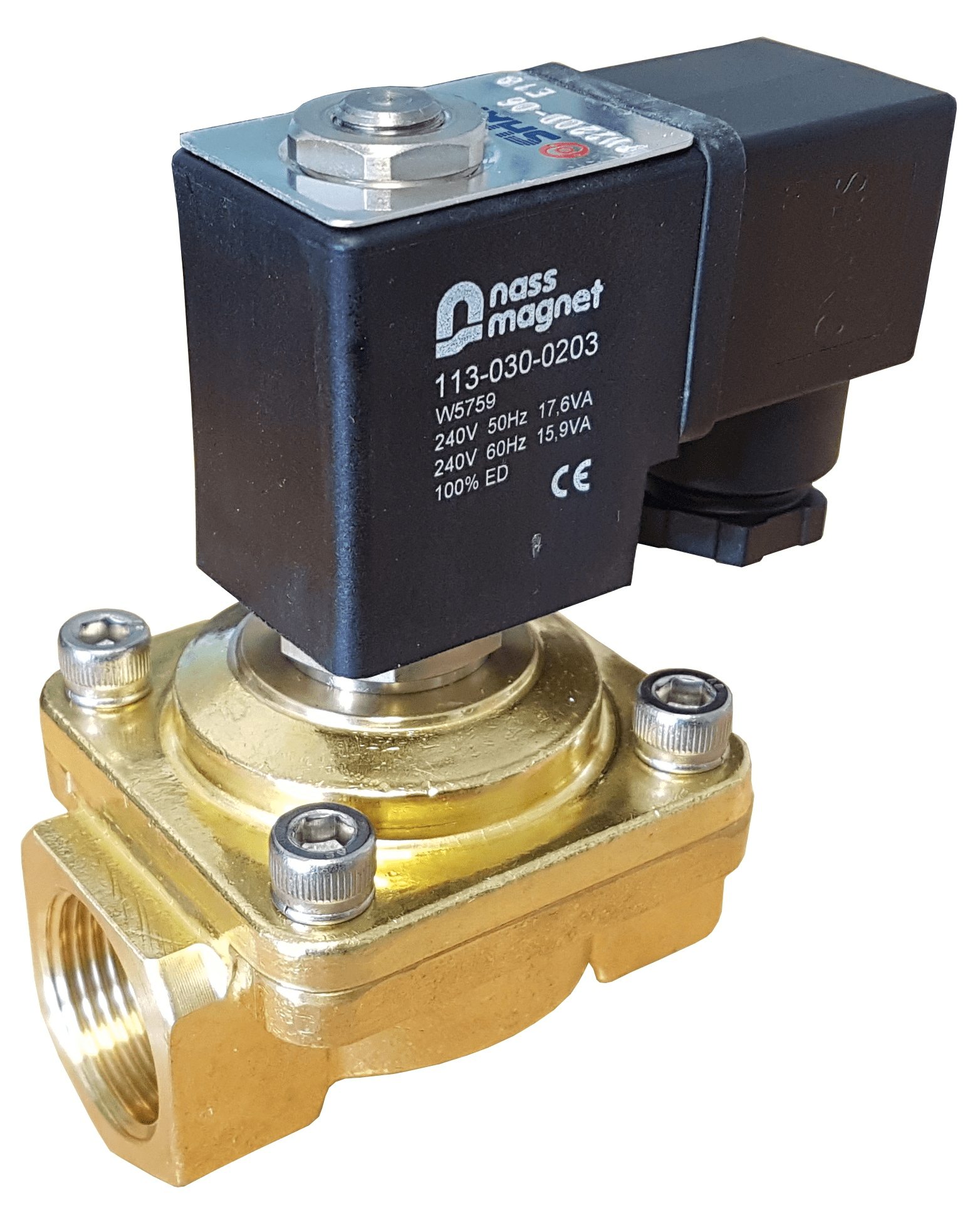

3/4 WRAS Brass water solenoid valve 0-10 Bar 2/2 N/Closed

3/4 WRAS Brass water solenoid valve 0-10 Bar 2/2 N/Closed

£125.00 GBP
£125.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

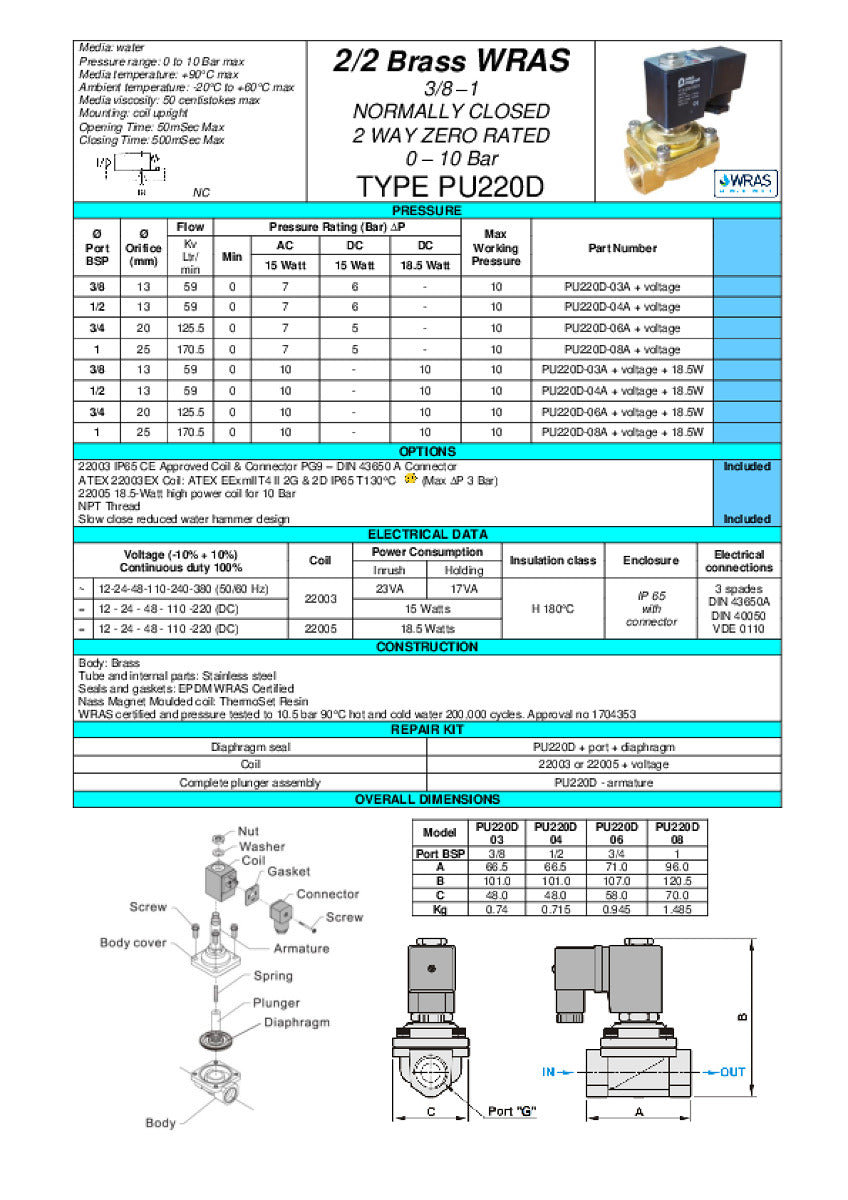

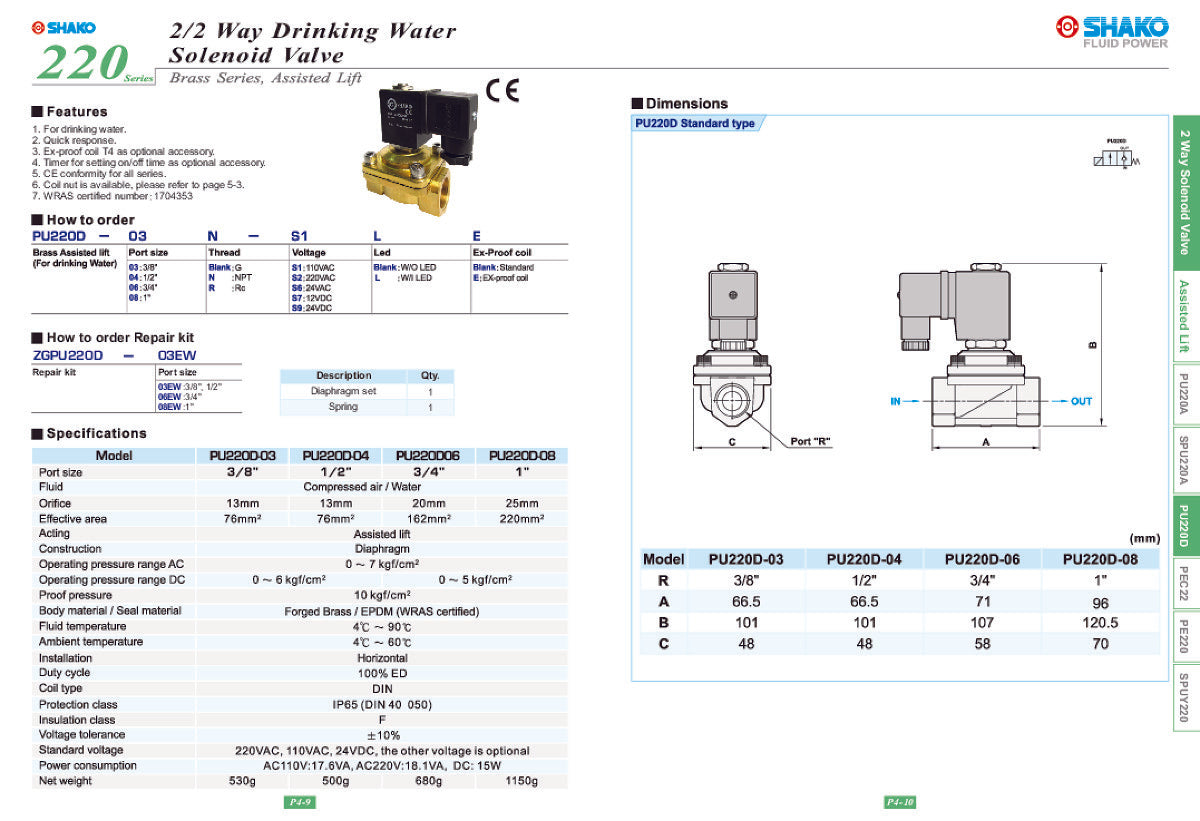

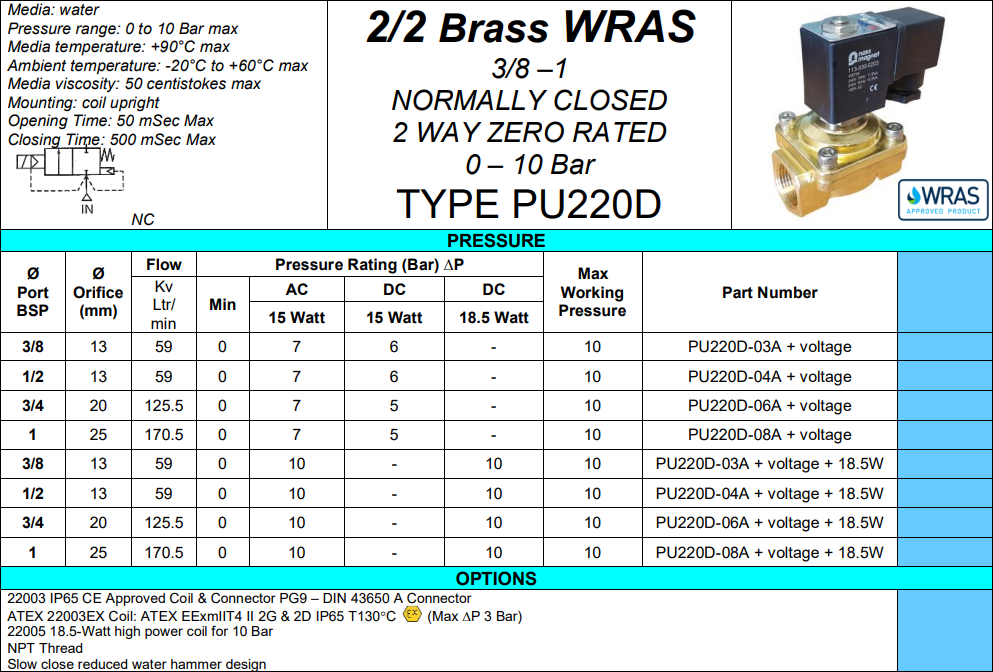

3/4 inch WRAS approved Brass water solenoid valve PU220D-06
Function: 2/2 way normally closed with anti water hammer design (slowed close)
Port: 3/4 BSPP thread, option NPT or Rc Thread
Pressure: 0 to 7 Bar (AC) or 0 to 5 Bar (DC Voltage) with 15 Watt Coil.
Pressure: 0 to 10 Bar with 18.5 Watt Coil.
Operation: Assisted Lift (Zero Rated)
Temperature: -5°C to +90°C Max
Body: Brass
Internals: stainless steel
Seals: EPDM WRAS approved for water.
WRAS Certificate Number 2306329.
Media: Water
Orifice: 20mm
Kv flow factor: 125L/Min based on water with a 1 bar pressure difference.

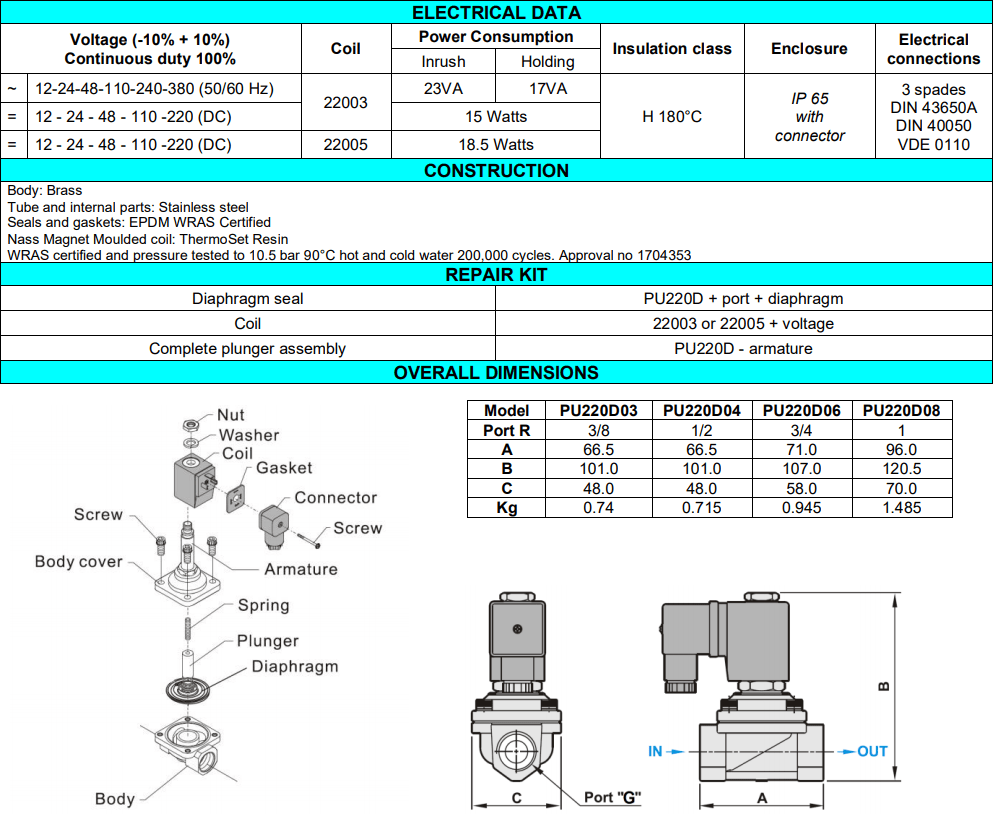

Coil: 15 Watt system 13/30 Nass Magnet Class H IP65 CE DIN43650A 100% duty rated.
Coil: 18.5 Watt system 13/36 Nass Magnet Class H IP65 CE DIN43650A 100% duty rated.
Protection: IP65 with electrical connector (Included).
Coil option: ATEX EExmIIT4 Temperature Class T4 T130°C Ex mb IIC T4 and Gb Ex mb tb IIIC T130°C Db for hazardous area 21 and 22, with max media temperature +80°C and pressure 3 Bar Max.
Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 36vAC, 48vAC, 110vAC, 230vAC or 380vAC 50/60hz.

WRAS Certificate Number 2306329.

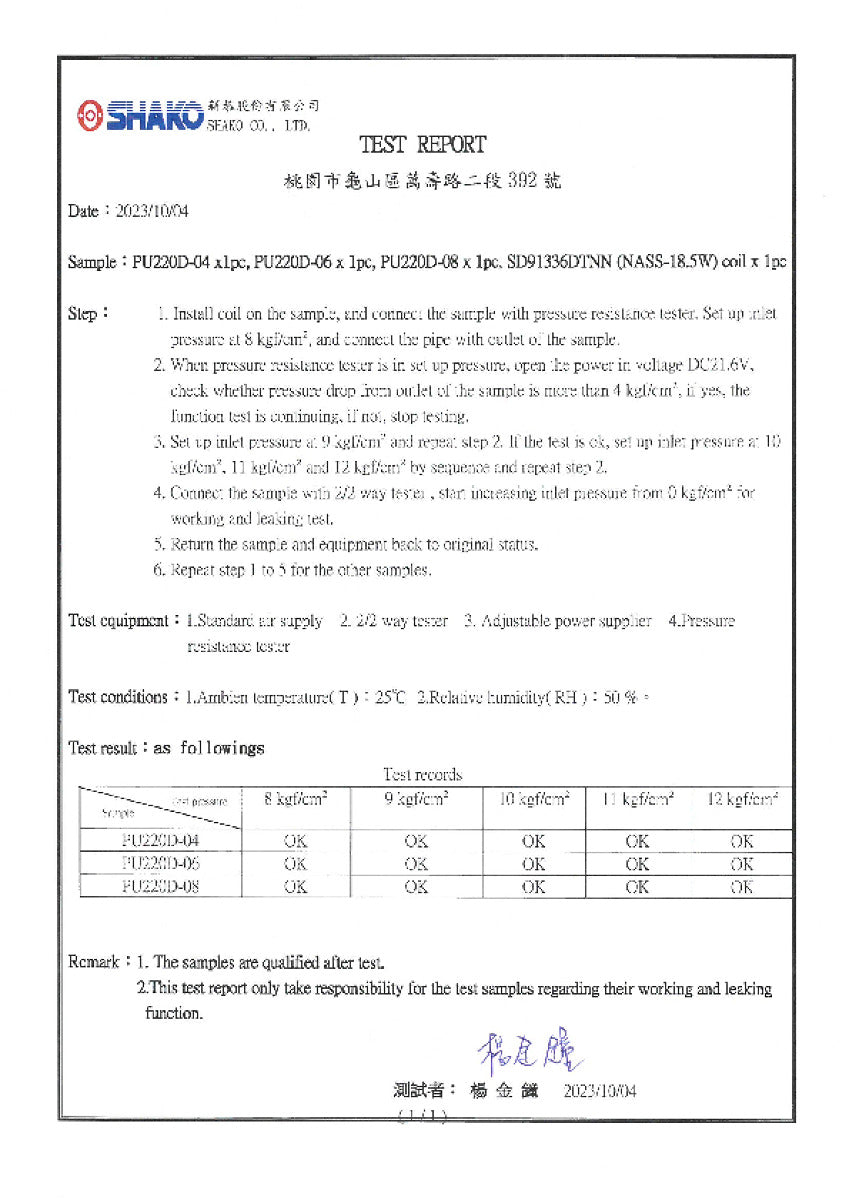

Tested and approved 200,000 open and close cycles at 7 Bar with water, then a final 10.5 Bar pressure leak and function test.
